SolaX Power X3-IES Series User Manual

104
Electrical Connection
Wiring procedures

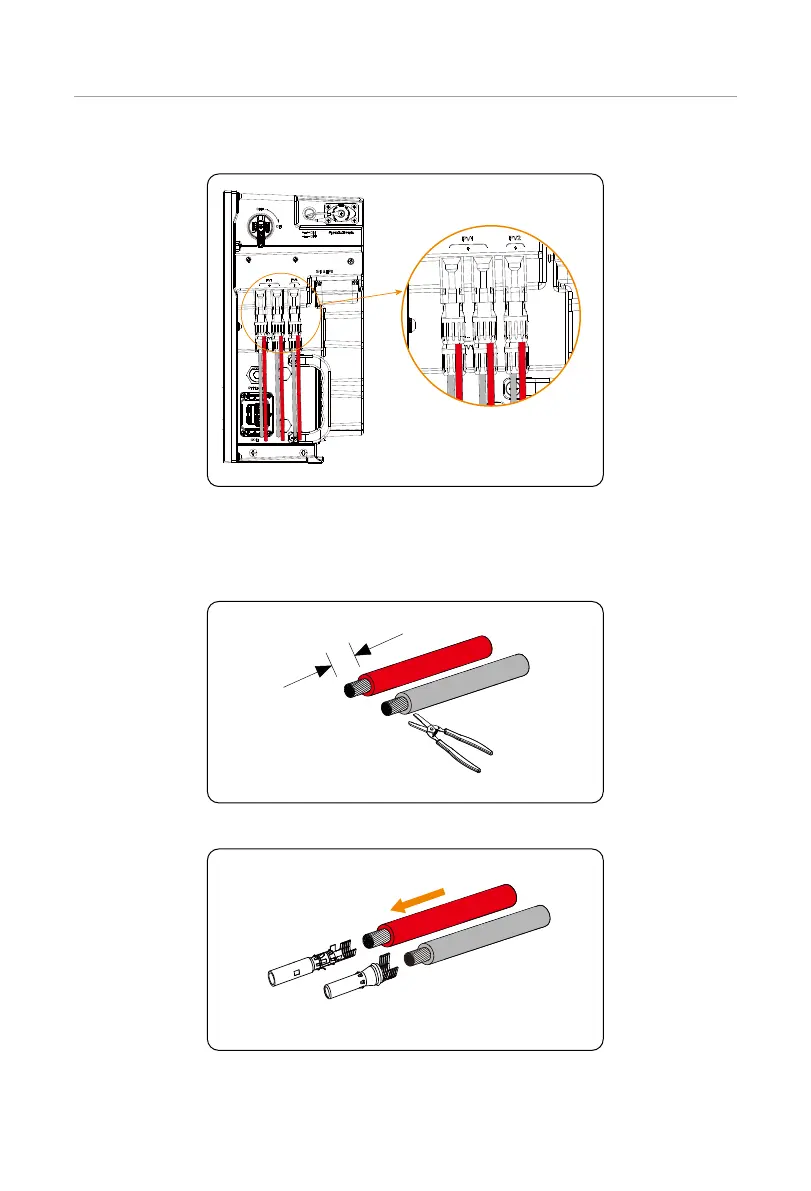

Figure 7-30 Well connected PV cables
Step 1: Strip 7 mm insulation jacket off PV cables. Insert the stripped ends of PV cables
(+/-) into PV pin contacts (+/-). Ensure that the stripped cable and the PV pin
contact are of the same polarity. Crimp them with a MC4 crimping tool .
6 mm

7 mm
wire stripper
+
-
+
-
Figure 7-31 Stripping PV cables
+
-
PV pin contacts
Figure 7-32 Inserting PV pin contacts into PV cables
