SolaX Power X3-IES Series User Manual

105
Electrical Connection
MC4 crimping tool
+
-

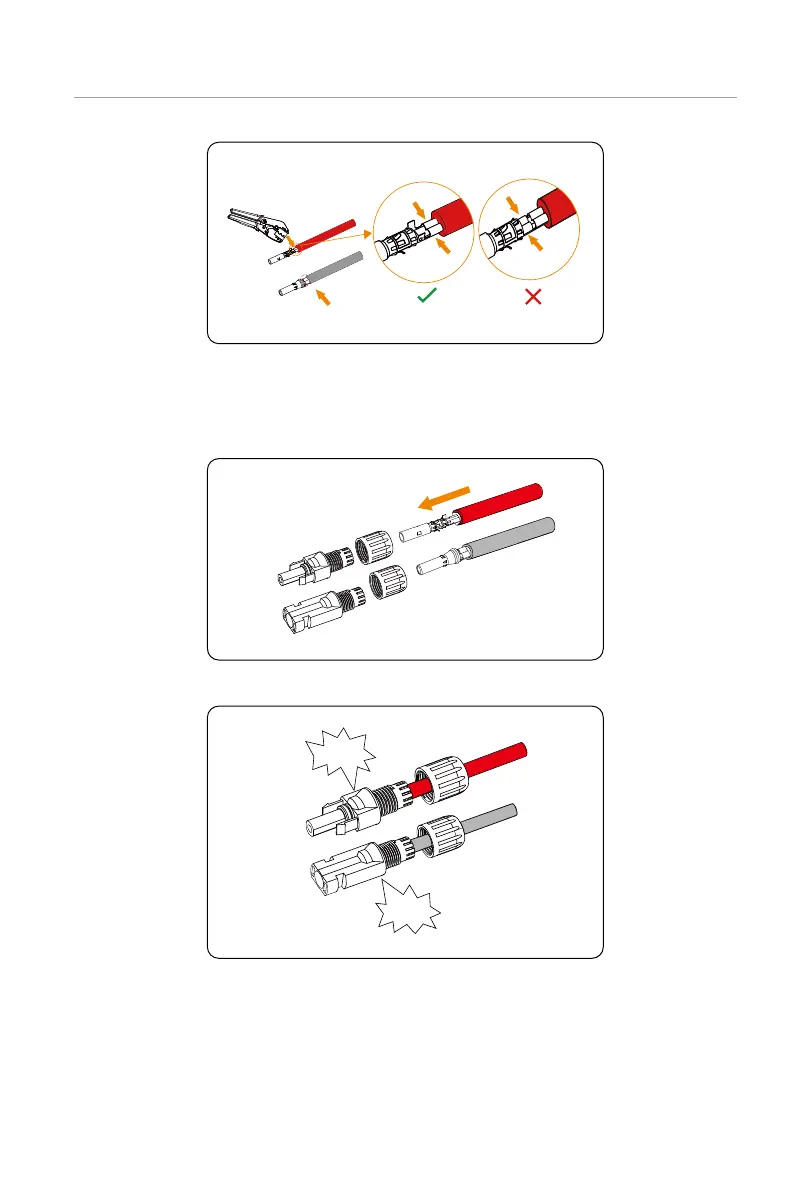

Figure 7-33 Crimping cables with PV pin contacts
Step 2: Thread PV cables through swivel nuts and insert cables (+/-) into PV connectors
(+/-) until a "Click" is heard. Gently pull cables backward to ensure firm
connection. Tighten swivel nuts clockwise.
PV connectors
+
-
Figure 7-34 Threading PV cables with PV pin contacts connected
Click!
Click!
+
-
Figure 7-35 Securing PV cables
