139

Electrical Connection

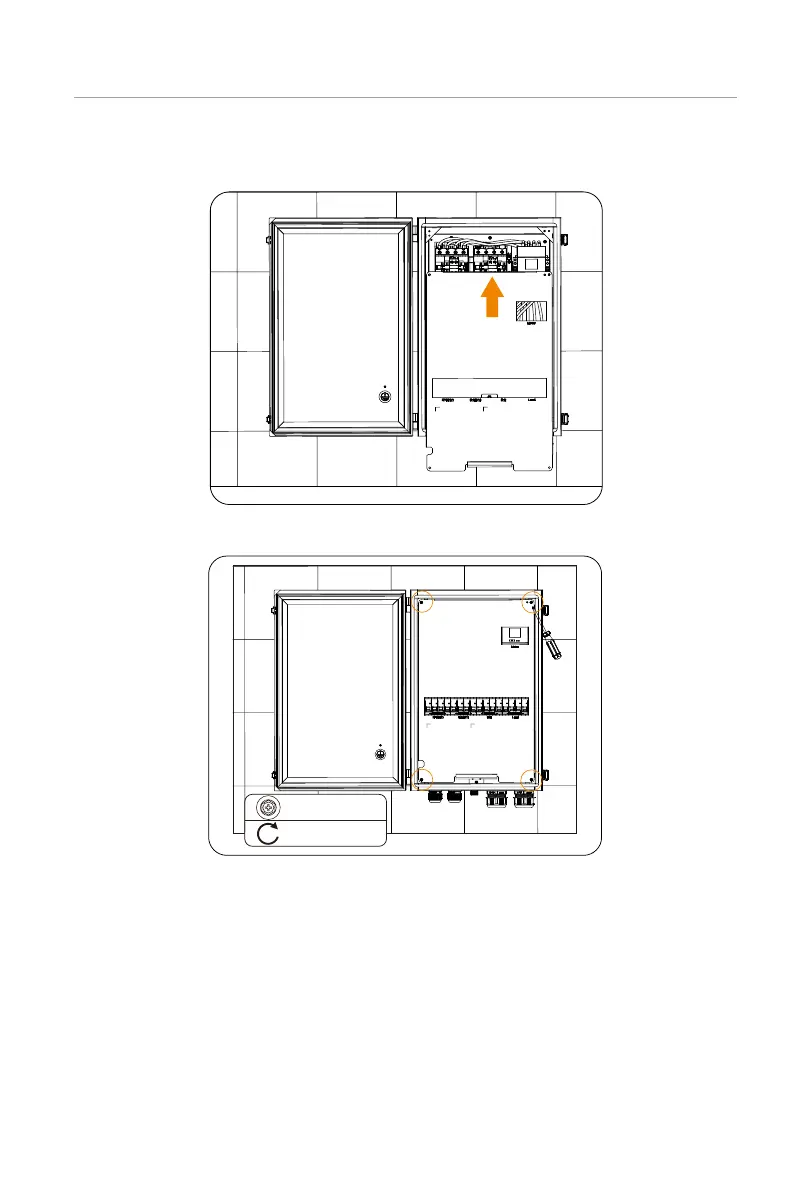

Step 19: Install the plate into the matebox and secure the plate with screws at the corners

of the plate.

Figure 7-95 Reinstalling the plate

0.8±0.1 N·m

Figure 7-96 Securing the plate

Step 20: Lock the buckles with the key.
