Electrical Connection

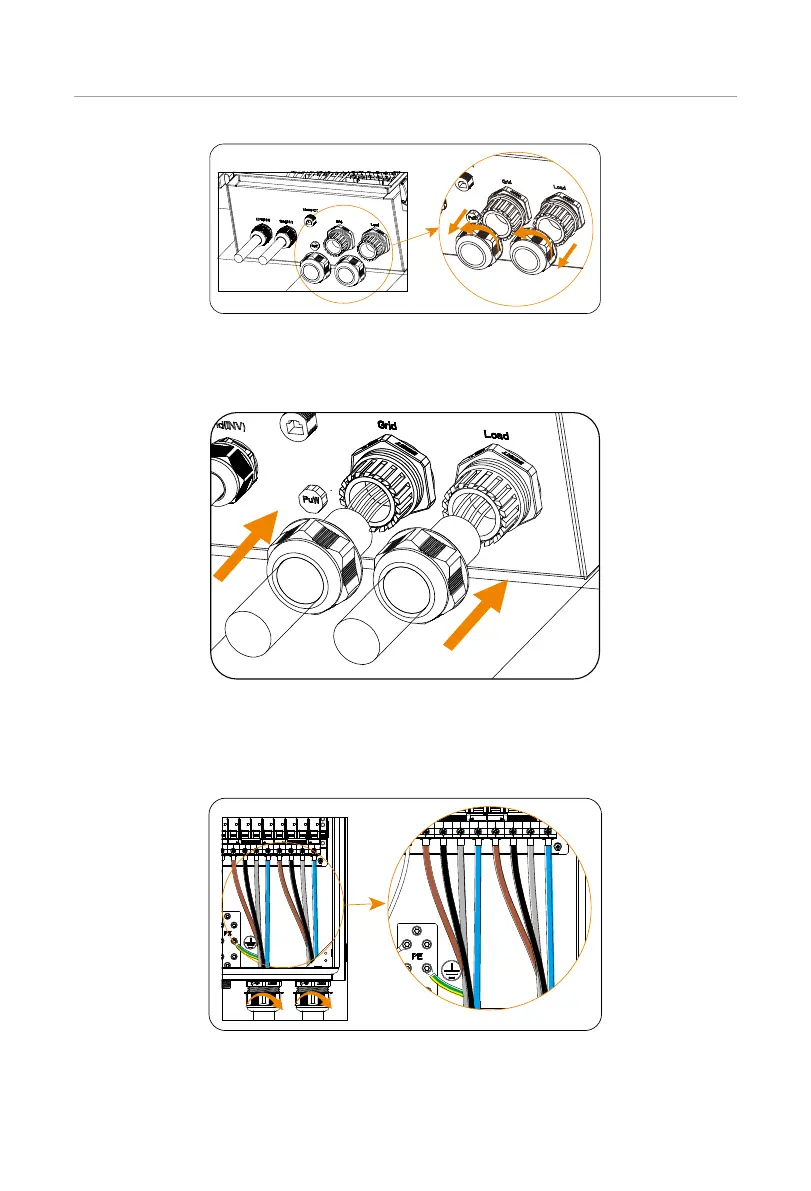

Figure 7-92 Loosening the swivel nut of the Grid and Load cable
Step 17: Thread the assembled Grid and Load cable through the swivel nuts, the
corresponding port and then into the matebox.
Figure 7-93 Threading Grid and Load cables through the ports
Step 18: Connect L1, L2, L3, N and PE cable of the Grid cable and L1, L2, L3 and N cable of
the Load cable to the L1, L2, L3, N and (PE) terminal in the matebox respectively.
Tighten the two swivel nuts.
Grid
Load
L1 L2 L3 N
PE
L1 L2 L3 N
Figure 7-94 Connecting assembled Grid and Load cables to the matebox
To Next Page
