208
Decommissioning
Step 14: Unscrew the screws of fastening the wall mounting bracket and remove the wall
mounting bracket.
Disassembling T-BAT-SYS-HV-S50E battery system
Step 15: Press and hold the lock button on the terminals to unplug the short power cable
in the case of one tower;
Or press and hold the lock button on the terminals to unplug power cables in the
case of two towers.
Step 16: Rotate the ring anti-clockwise to unplug the heater cable after two arrows are
aligned in the case of two towers.
Step 17: Use and rotate anti-clockwise a rotation wrench to unplug the communication
cable in the case of two towers.

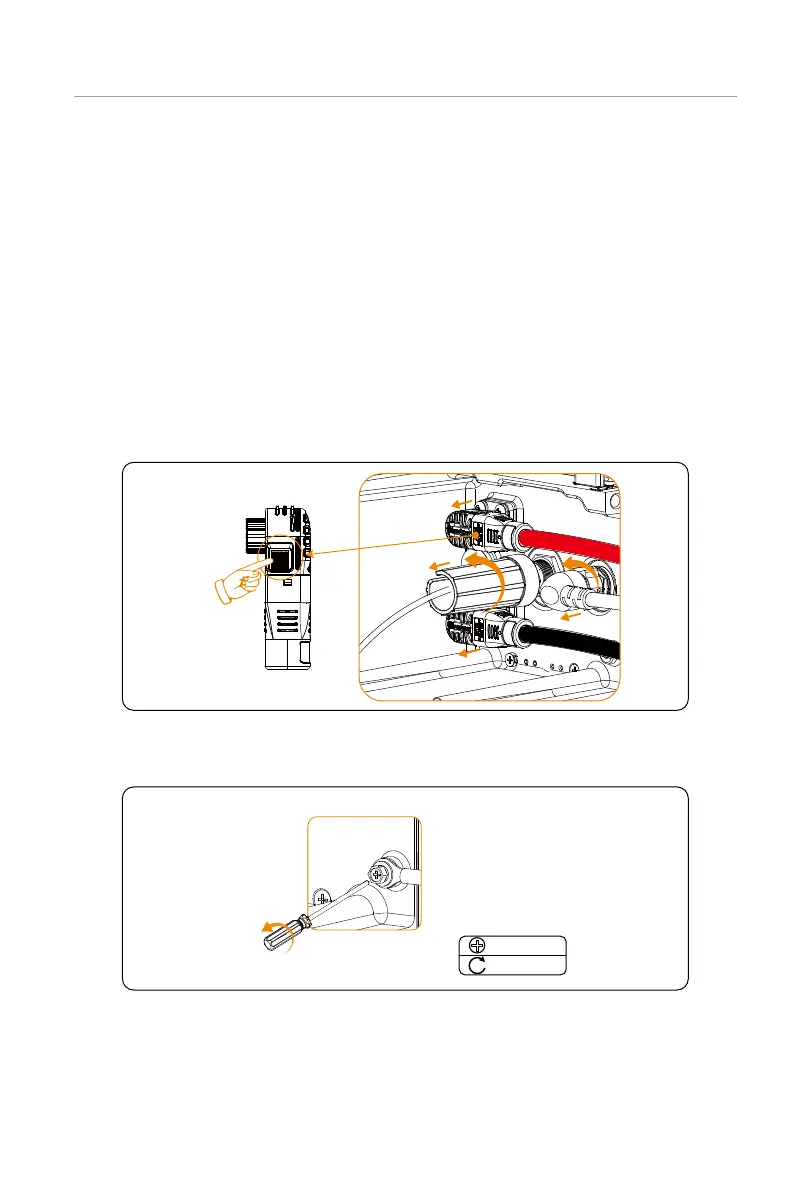

Press and hold
the lock button to
remove power cables
Figure 12-14 Disconnecting battery connectors
Step 18: Unscrew the screws to remove the grounding cable.
M5
2.2-2.5 N·m
Figure 12-15 Disconnecting grounding cable
