Mechanical Installation
brackets on the wall;
3. Align the holes on the positioning cardboard with the dots in the second row
on the wall;
4. Mark the dots where "X3-IES" is noted on the positioning cardboard.

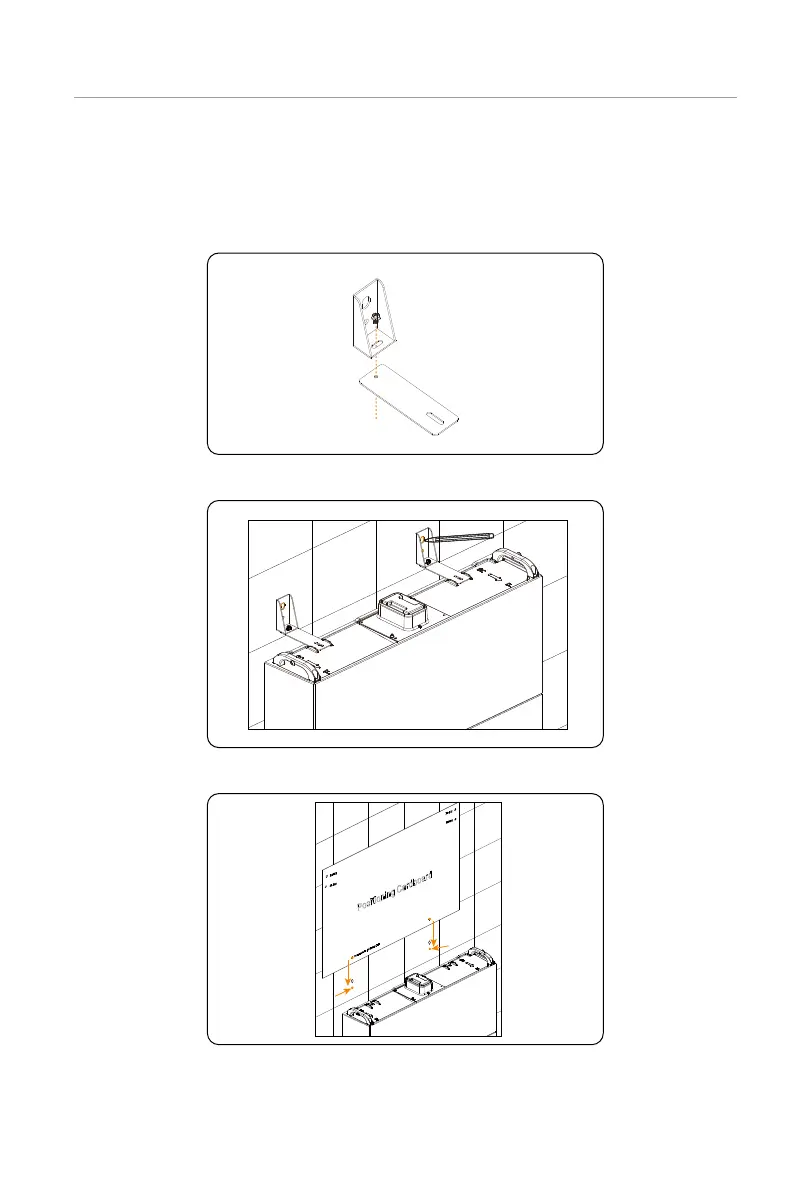

Figure 6-15 Attaching two brackets
Figure 6-16 Marking the position of BMS
Figure 6-17 Aligning the positioning cardboard with the dots on the wall
