Mechanical Installation
Step 16: Lock the inverter brackets on both sides of the inverter.
1. Tighten but not lock the self-tapping screws into the wall.
2. Lock screws on the inverter.
3. Lock screws into the wall.
M5 * 10
2±0.1 N·m
ST 6.3
2±0.1 N·m

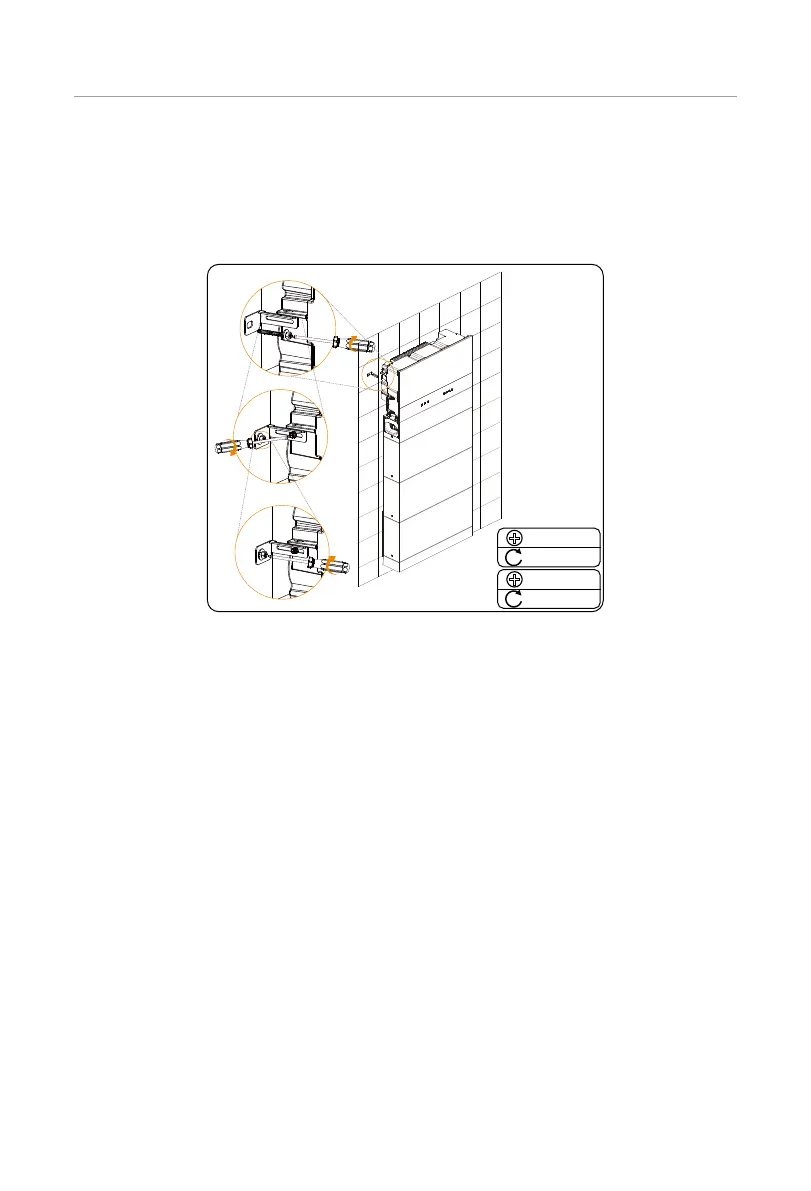

Figure 6-51 Locking the inverter brackets
Step 17: (Optional) Lock the inverter as needed. (The lock's diameter doesn't exceed
5mm.)
