MPI-540 – USER MANUAL

106

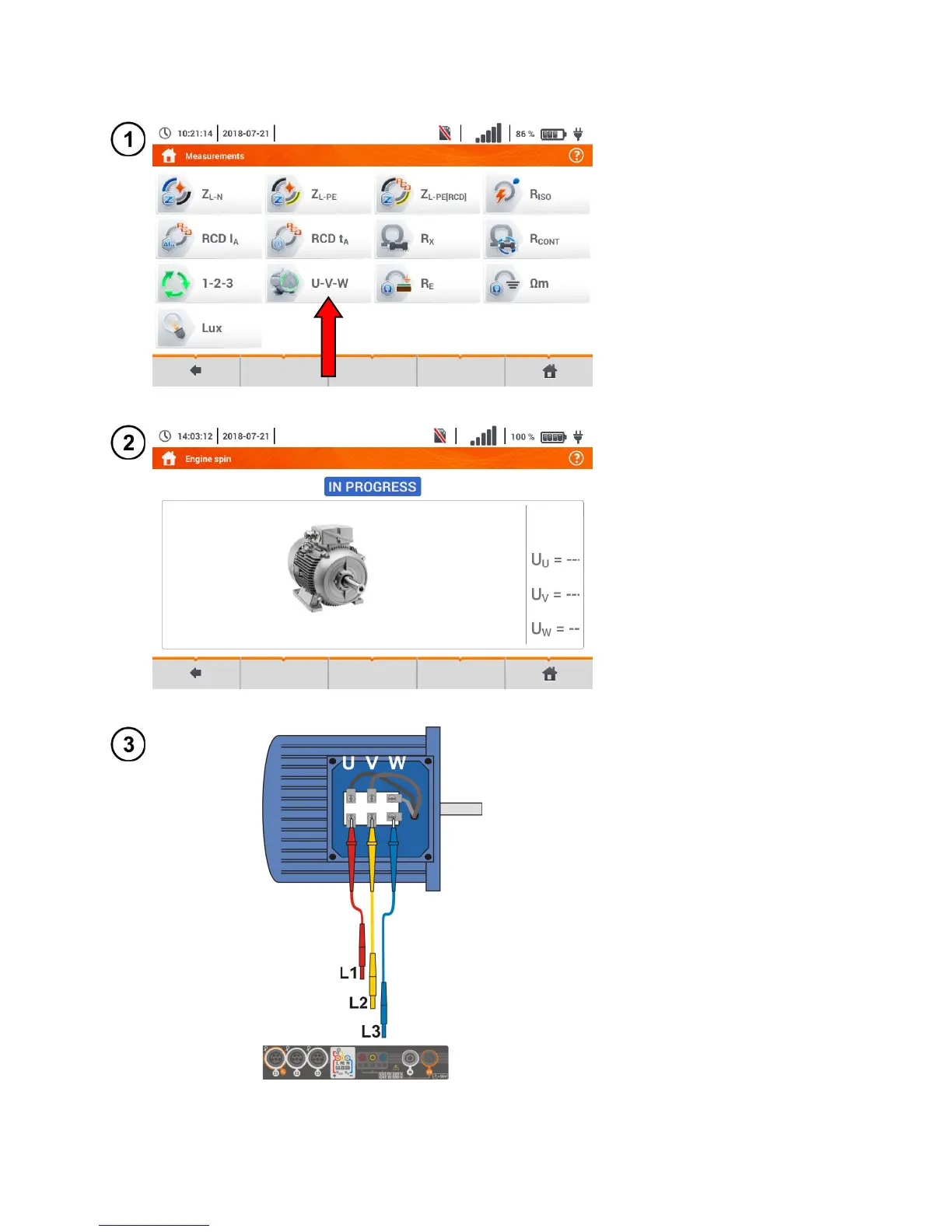

3.11 Checking the motor rotation direction

Select item Motor rotations, to

call up the measurement

screen.

The meter ready for testing.

 Connect the meter to the mo-

tor according to the drawing,

i.e. U terminal do input L1, V

to L2, W to L3.

 Vigorously rotate the motor

shaft to the right.
