The financial loss can be estimated based on the current readings in terms of:
one hour,
one day,
one month
one year.
When one of the above options is activated ( ), the table will display data relevant to the
selection.
Description of function icons
going to the configuration panel of the loss calculator (section 4.9.2)
performing the screenshot
returning to the main menu of the recorder mode
4.9.2 Configuration of the loss calculator
After the icon has been selected, the calculator configuration panel appears, shown in Fig. 4.29
and Fig. 4.30. It is possible to switch between screens using the icons.

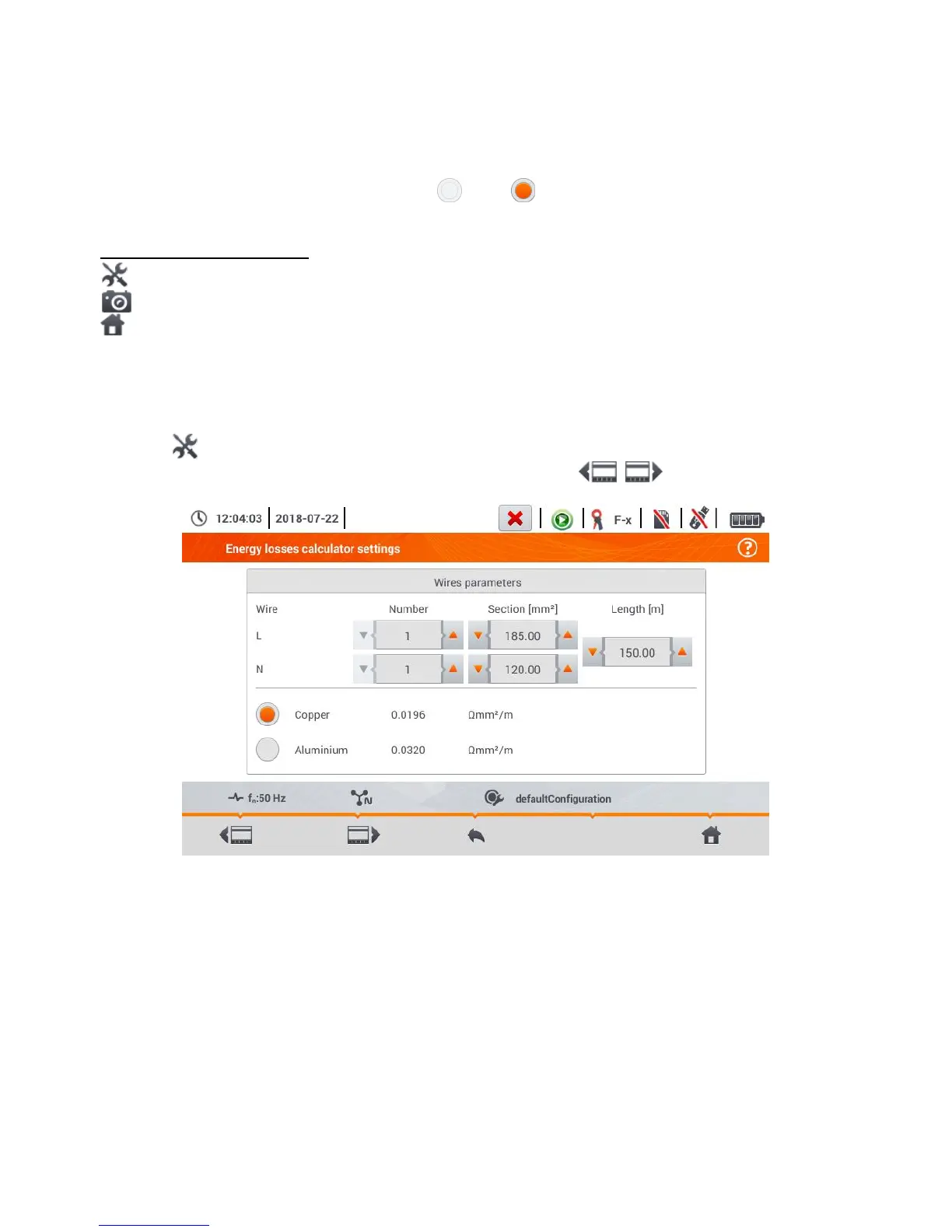

Fig. 4.29 Energy loss analysis – configuration screen 1
On the first screen, set the parameters of the wire, to which the analysis applies, namely:
for phase conductors L:
o number of wires in the phase,
o cross section of cores in mm
2
,
for neutral conductors N:
o number of neutral wires,
o cross section of cores in mm
2
,
the length of the analysed line in metres,
line material – copper or aluminium.
