3.4.4 Measurement of fault loop impedance in L-PE circuit protected with
a residual current device (RCD)

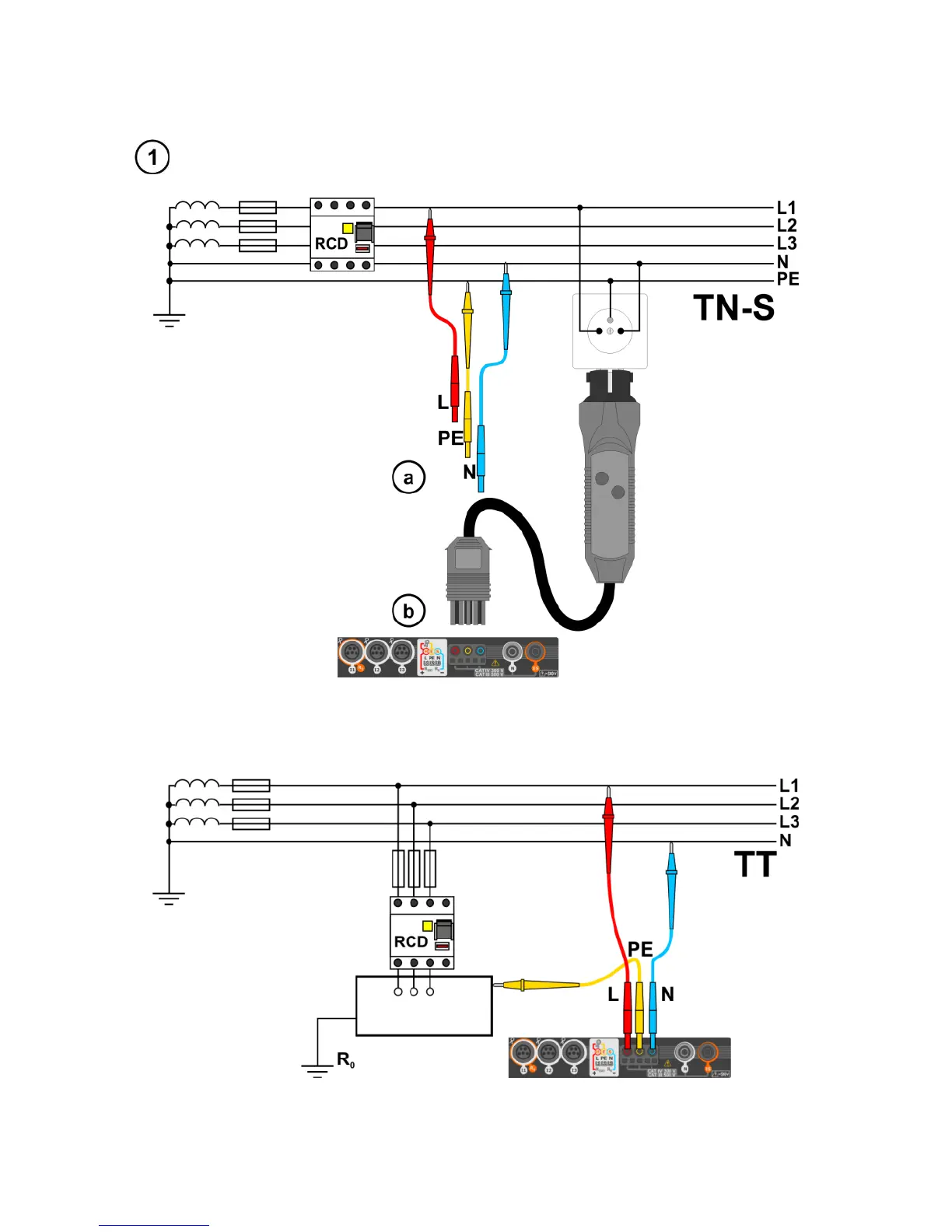

Connect test leads according to Fig. 3.3, Fig. 3.4 lub Fig. 3.5.
Fig. 3.3 Measurement in the TN-S system
Fig. 3.4 Measurement in the TT system
