MPI-540 – USER MANUAL

3.7.2 Measurement of RCD disconnection current

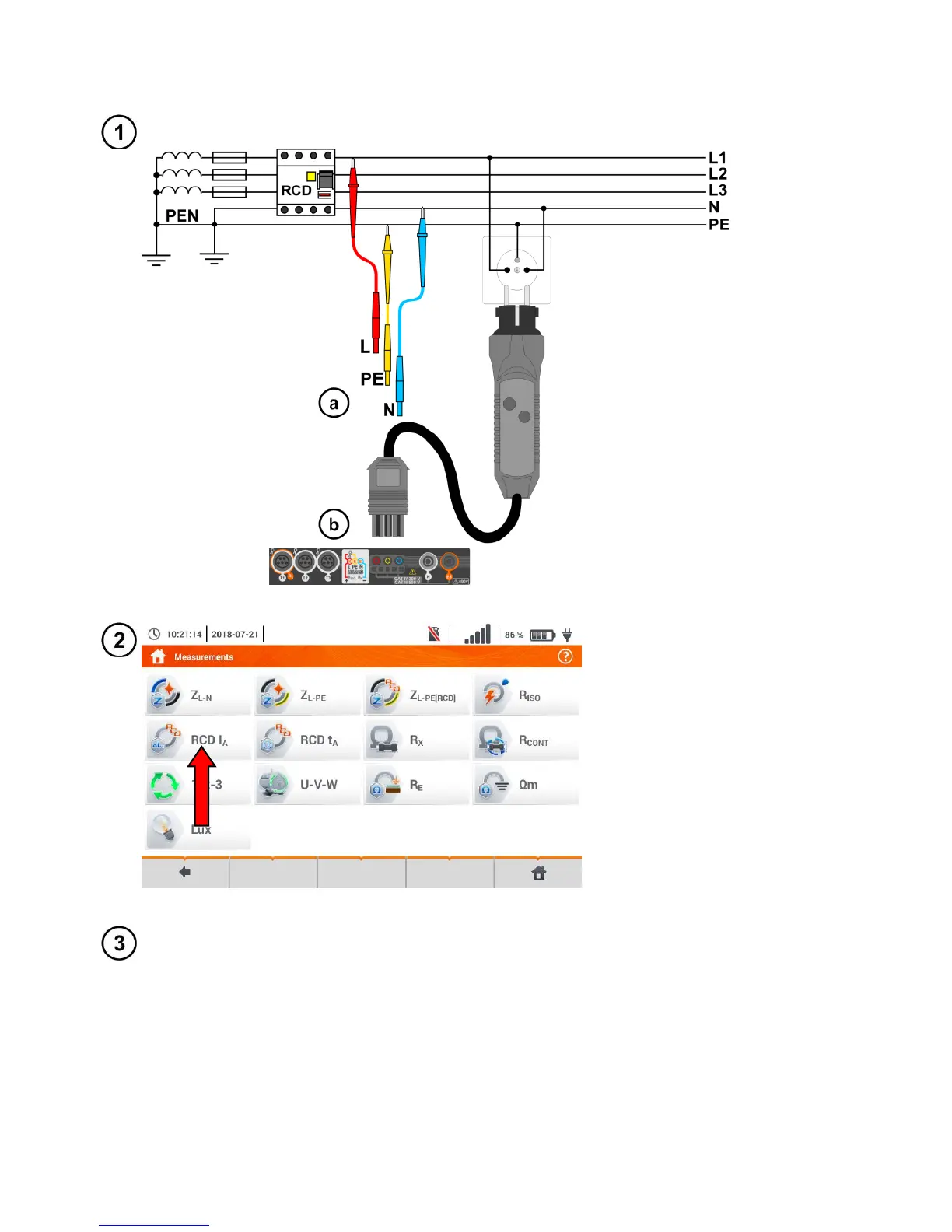

Connect the meter to the installation according to the drawing.

Select item RCD I

Enter the measurement settings in accordance with section 3.7.1.
