Based on the above parameters, the calculator will calculate the power loss in the analysed line.

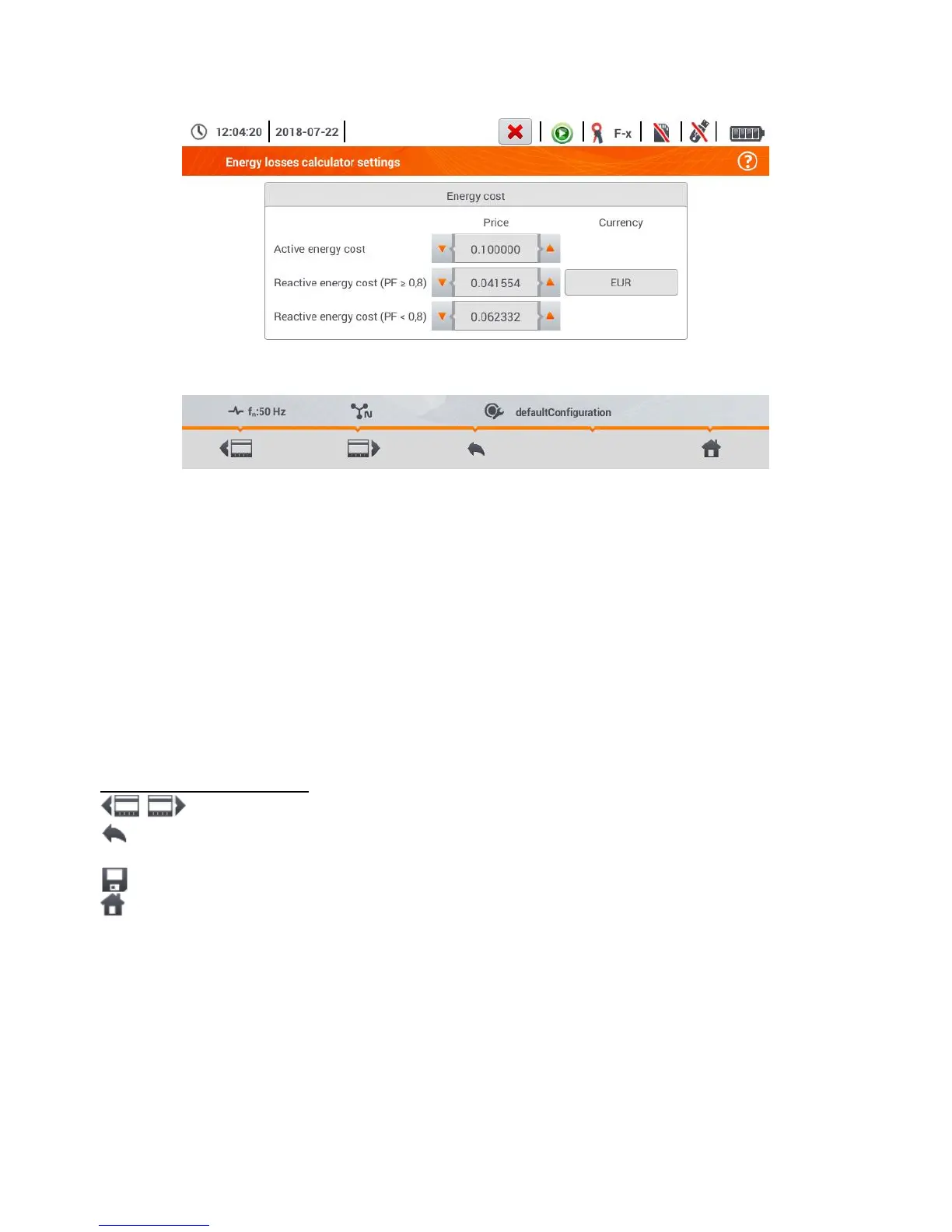

Fig. 4.30 Energy loss analysis – configuration screen 2
On the second screen, set the parameters defining the financial loss, i.e:
cost of 1 kWh of active energy,
cost of 1 kWh reactive energy at power factor PF ≥ 0.8,
cost of 1 kWh of reactive energy at power factor PF < 0.8,
currency.
To change the currency:
tap the field with the current unit,
enter a new unit using the on-screen keyboard.
Description of function icons
switching between the two setting screens of the calculator.
returning to the results indicated by the calculator. If the settings have been modified and
saved, the results will be automatically calculated and displayed.
recording calculator settings
returning to the main menu of the recorder mode
