icon for selecting the view type. An additional menu appears, where type of view of the LIVE
mode can be changed
options menu for a chart or table. After selecting it, an additional menu bar is displayed, which
provides several new options:
hide/show the fundamental harmonic (not available in tabular view)
displaying values in absolute units (volts and amps)
displaying values as percent in relation to the fundamental component.
screenshot
closing the menu
return to the main menu of the recorder mode

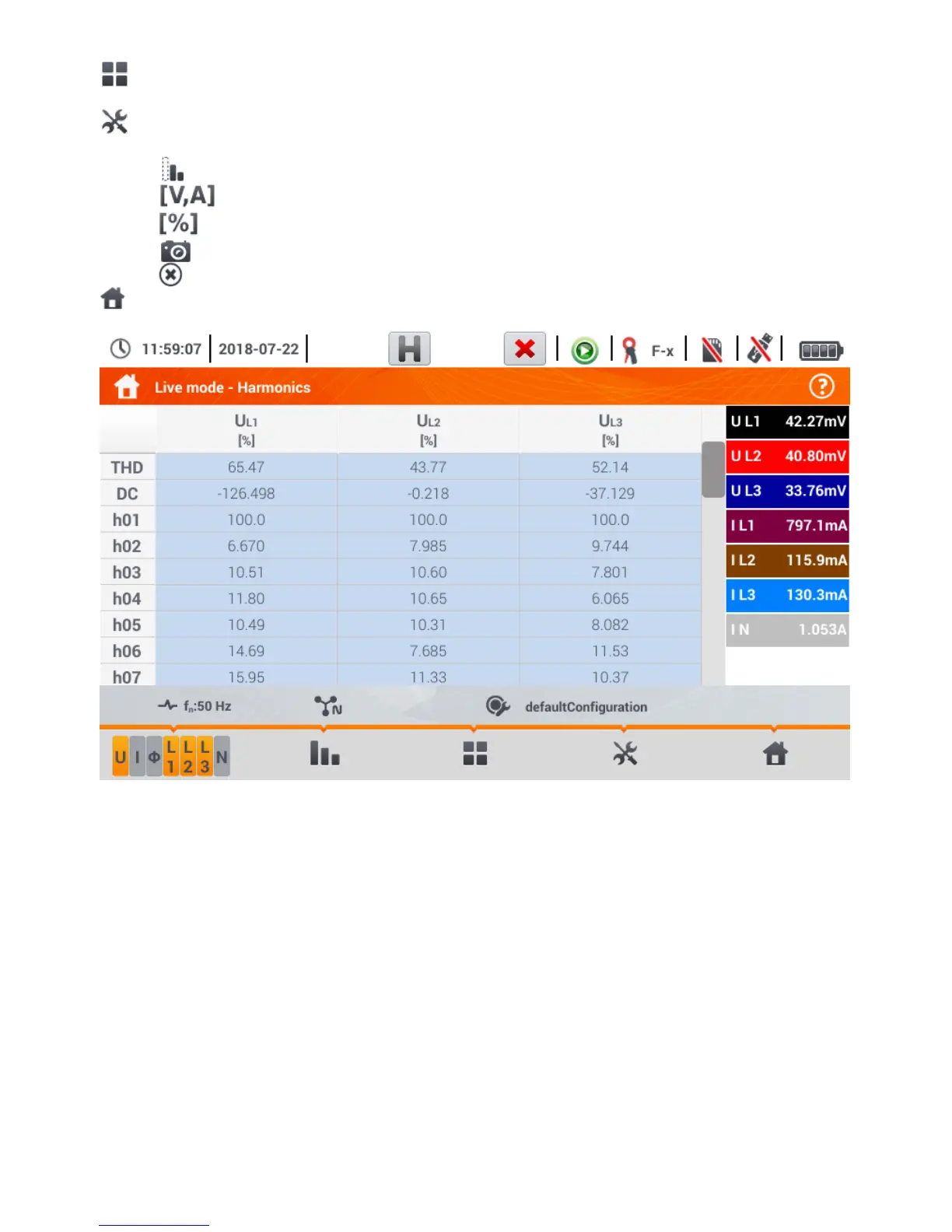

Fig. 4.18. Live mode - harmonics - tabular view
