MPI-540 – USER MANUAL
58

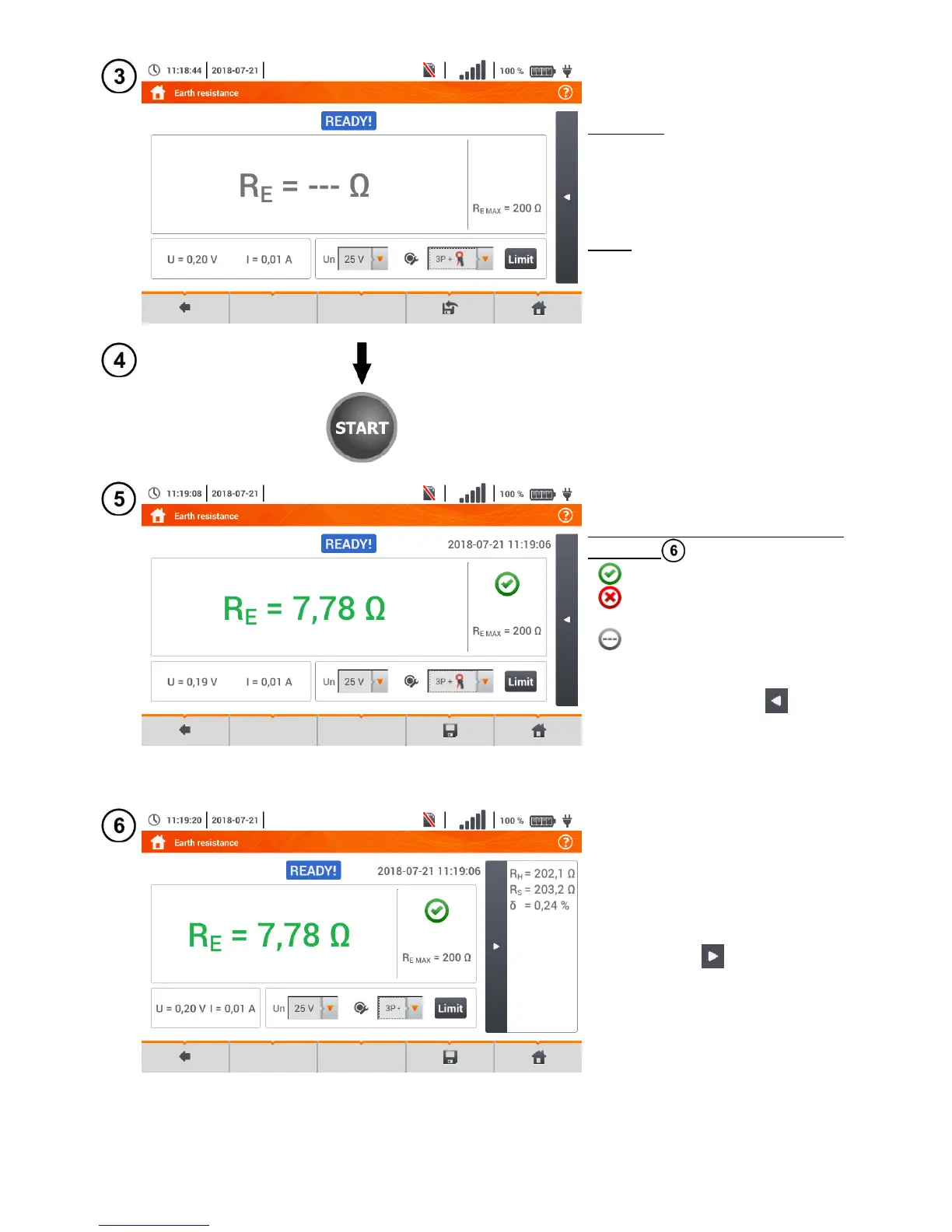

The meter is ready for measure-
ment.
Live mode
U – interference voltage currently
on the object
I – interference current currently
flowing through the object
Limits
R
E MAX
– currently set earth re-
sistance limit
Press START to start the meas-
urement.
Read out the result.
Signal lights for the limit (section
3.5.1 step )
the result is within the set limit
the result is outside the set
limit
assessment not possible
After selecting the bar on the
right side, a menu will slide out
with additional measurement re-
sults.
R
H
– resistance of current elec-
trode
R
S
–
resistance of voltage elec-
trode
δ – additional uncertainty caused
by resistance of the electrodes
Selecting the bar hides the
menu.
