MPI-540 – USER MANUAL
84

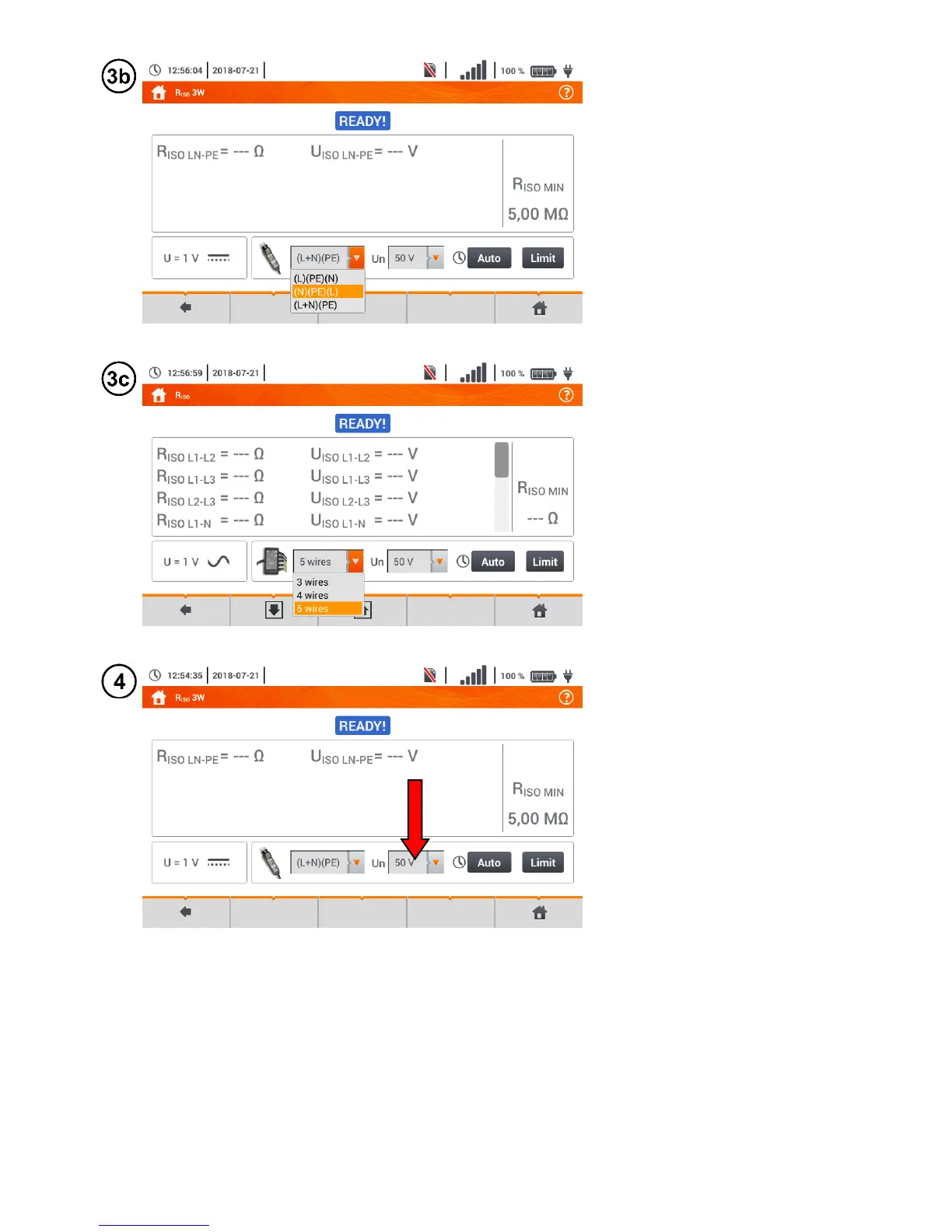

If
UNI-Shuko adapter has been
connected to the meter, select the
required option from the menu:
 (L)(PE)(N) – if the phase
conductor on the left relative
to the socket protective pin,
 (N)(PE)(L) – if the phase
conductor on the right rela-
tive to the socket protective
pin,
 (L+N)(PE) – shorted L and N
conductors, measurement to
PE (simplified method).
If AutoISO adapter has been con-
nected to the meter, select the re-
quired option from the menu:
 3 wires – measuring a 3-core
cable,
 4 wires – measuring a 4-core
cable,
 5 wires – measuring a 5-core
cable.
Touch the drop down menu to set
the measuring voltage Un.
