Soundcraft Vi6™ User GuidePage 10 - 6
INSERT

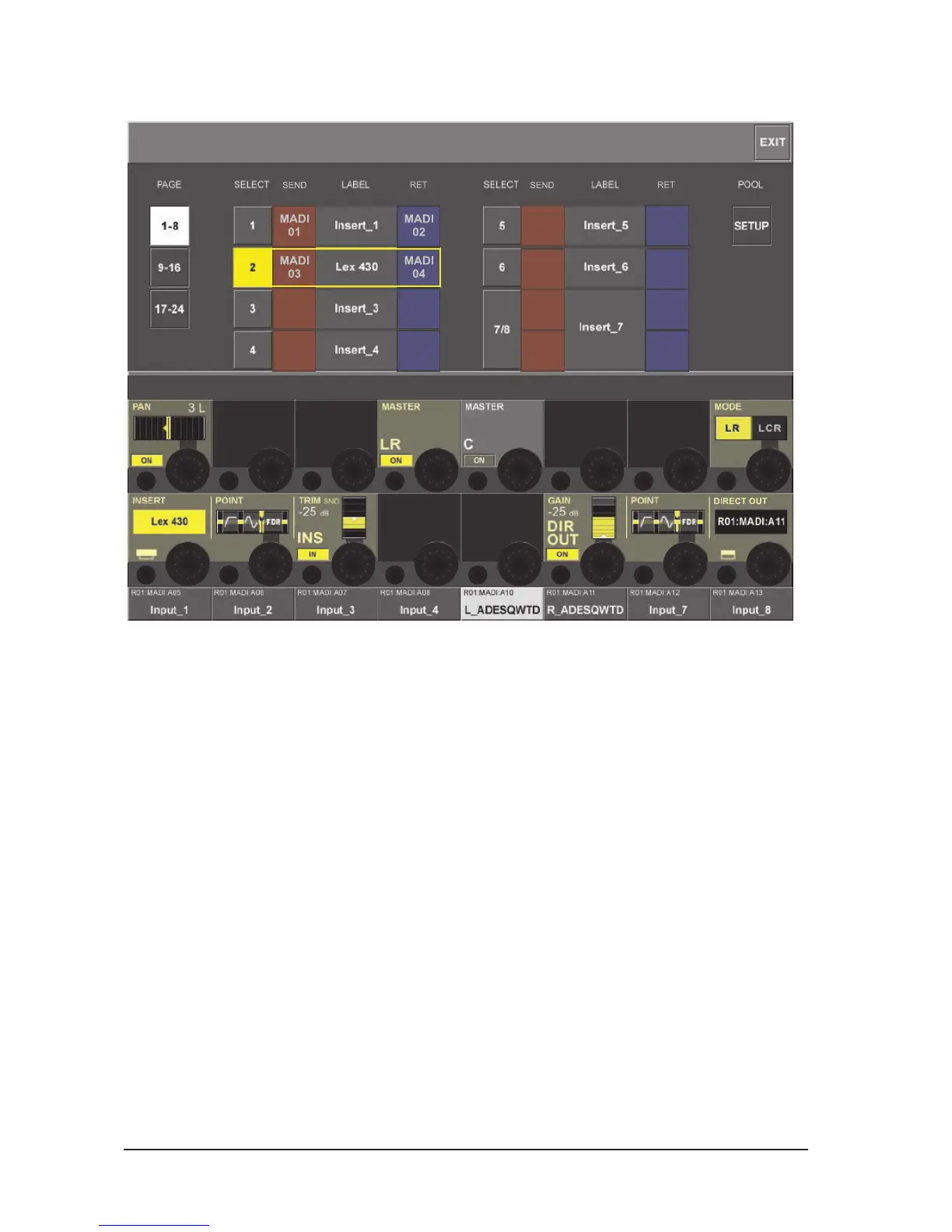

Figure 10-6: Insert Select Page.
Inserts are organized within an Insert POOL that contains up to 24 insert send/return pairs.. Once set up,
each insert in the pool can be easily patched to the desired Input channel or master insert point.
Patching An Insert Point To An Input Channel
* Select the PAN touch field of the destination input channel.
* Press the {INSERT}VST config button. The insert select page will open in the touch area, see
Figure 10-6.
* Select the preconfigured insert pair of input & output connections [1]-[24] from the pool.
* Leave the page with <EXIT> or press {INSERT} again.
Before an insert can be patched into a channel, the physical connectors or MADI channels for the send
and return must be defined. A specific pair of connectors can be set up for each device, and the device
name entered for easy recognition. Press <SETUP> to access the Insert Point Setup page (see Figure 10-
7).
