Soundcraft Vi6™ User GuidePage 14 - 8
LOG

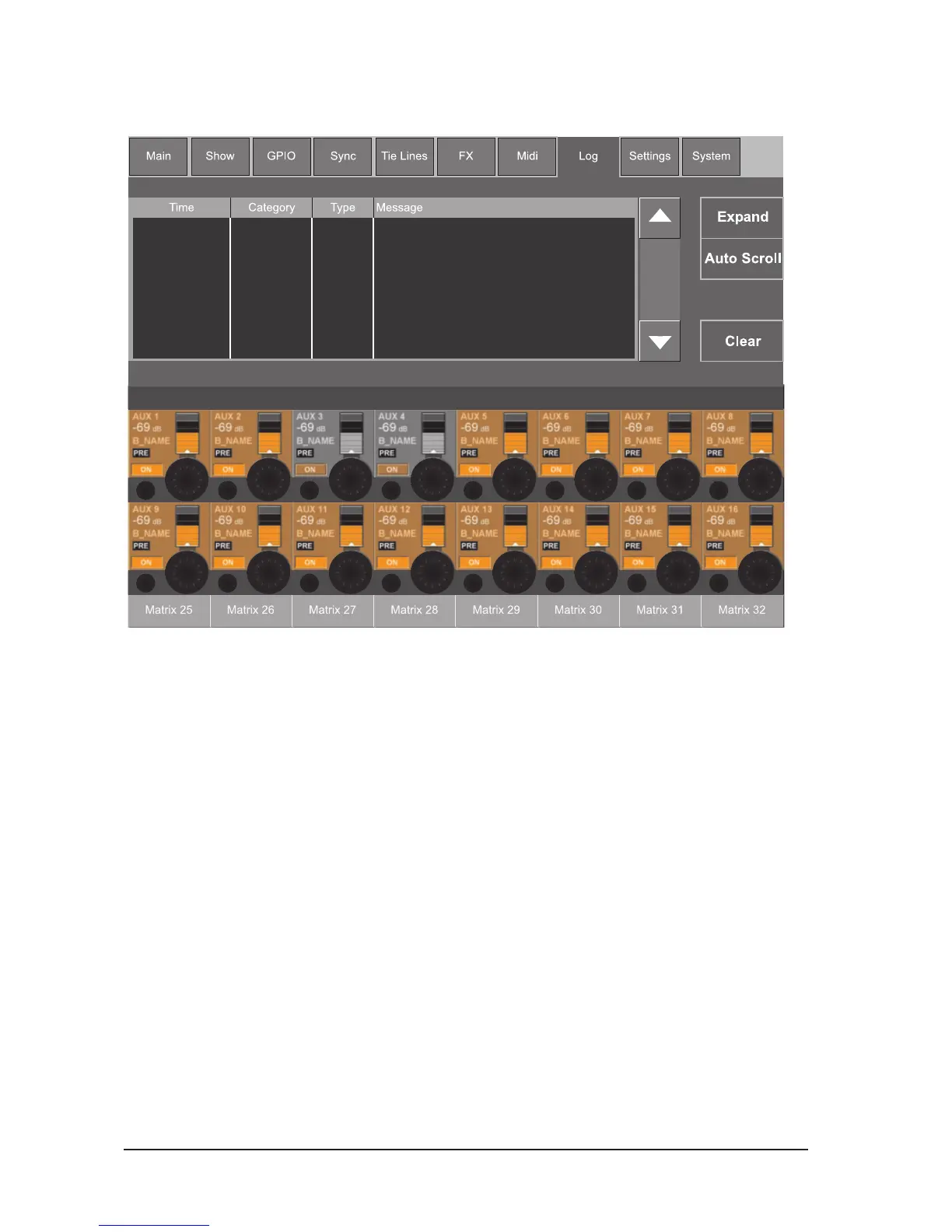

Figure 14-9: Log Page.
This page displays any errors which have occured since the console was last powered-up. These would
usually be communications errors between the various components in the system, i.e. control surface,
local rack and stagebox.
The arrow butons allow the user to scroll up and down the list.
The <Expand> button displays 3 lines of text for the currently-selected message, the <Compact> button
replaces <Expand>.
The <Auto Scroll> button causes the most recent message to be dispalyed as the currently-selected one.
The <Clear> button clears the log.
Hint: The most recent message is also displayed at the top right of the master section’s main screen, in the
Error Log Display Area (see Figure 14-11). The message is cleared from the main screen after the Log page
has been viewed by the user. Note that the Log page can be reached as described above, or by touching
the Error Log Display Area on the main screen.
