Soundcraft Vi6™ User Guide Page 21 - 1
Vi Processor™ Card
General
The Vi Processor™ Card fitted to the Soundcraft Vi6™ contains 8 powerful LEXICON® Effects Processing
Units and 35 high-quality BSS® 30-band Graphic Equalisers.
LEXICON® Effects
Each Effects Unit can be inserted into any Output/Main Master bus or into any Input Channel, or it can be
patched as an FX Return to an Input Channel, fed from an Aux send.
Each FX Unit supports up to 30 different professional LEXICON® Effects.
Effect Parameters can be easily changed via the VST Screens at a location on the Surface corresponding
to where the FX is inserted or patched. Additionally, the Parameters can be viewed and changed in the FX
Overview Page in the main menu.
All Parameters from the 8 Effects Units and for all Effects Type are stored in the desk Snapshots.
BSS® Graphic Equalisers
The 35 BSS® 30-band Graphic Equalizers are permanently assigned to the 32 Output Busses and the
three Main Masters. All Parameters from the GEQs are stored in the desk Snapshots.
LEXICON® Effects Format
Depending on the selected Effect Type, the FX processor works internally in one of three formats:

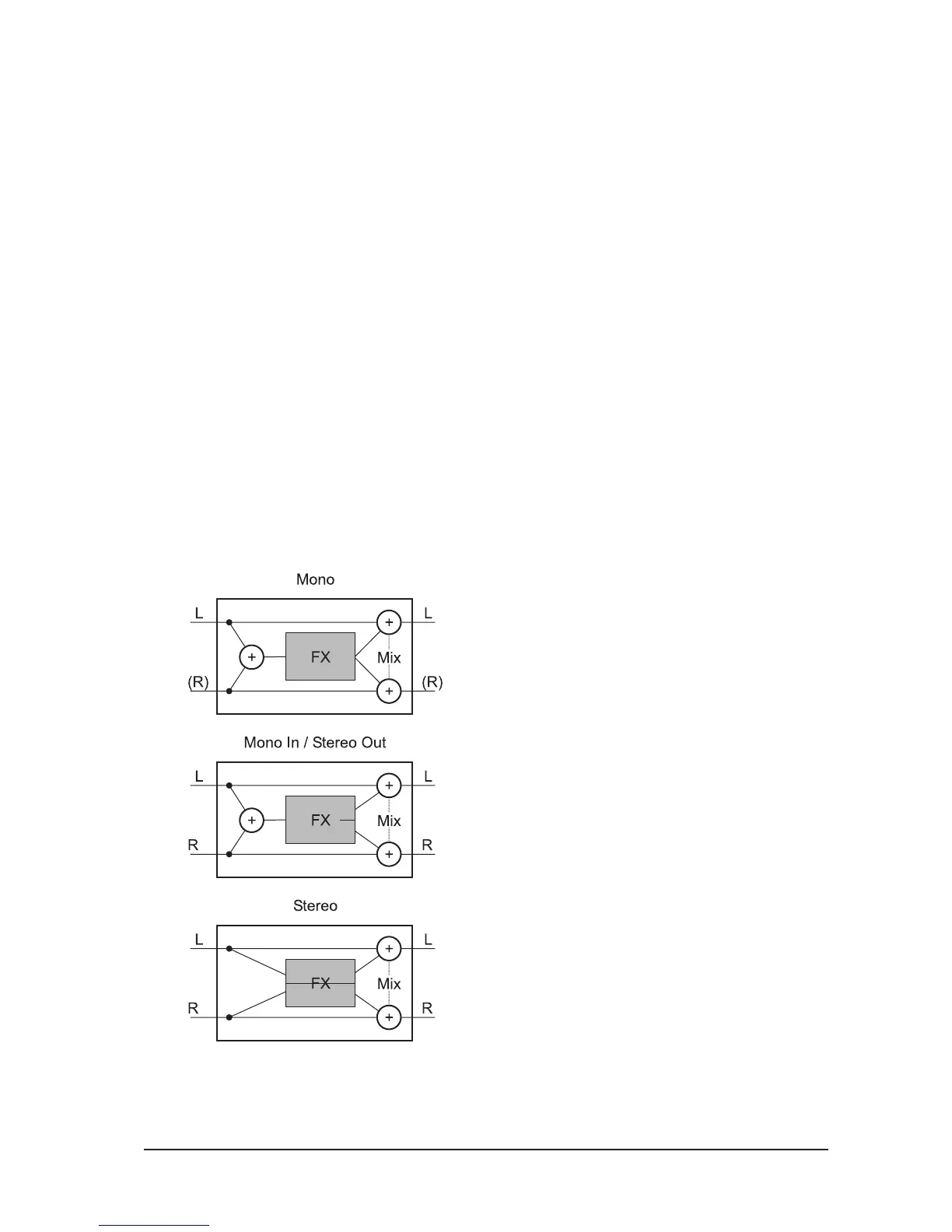

Figure 21-1: FX Processor Configurations.
The FX processor always has Stereo Inputs and
Outputs. If the FX Type needs only a Mono Input, the
Left and Right Input Signal are summed together.
If the FX Type outputs only a Mono Signal then the
Output Signal is distributed to both the Left and
Right Outputs.
The MIX Parameter adjusts the ratio between the
original (dry) signal and the effects (wet) signal.
To Next Page
