Soundcraft Vi6™ User GuidePage 11 - 8
MONITOR SETUP SUB-PAGE

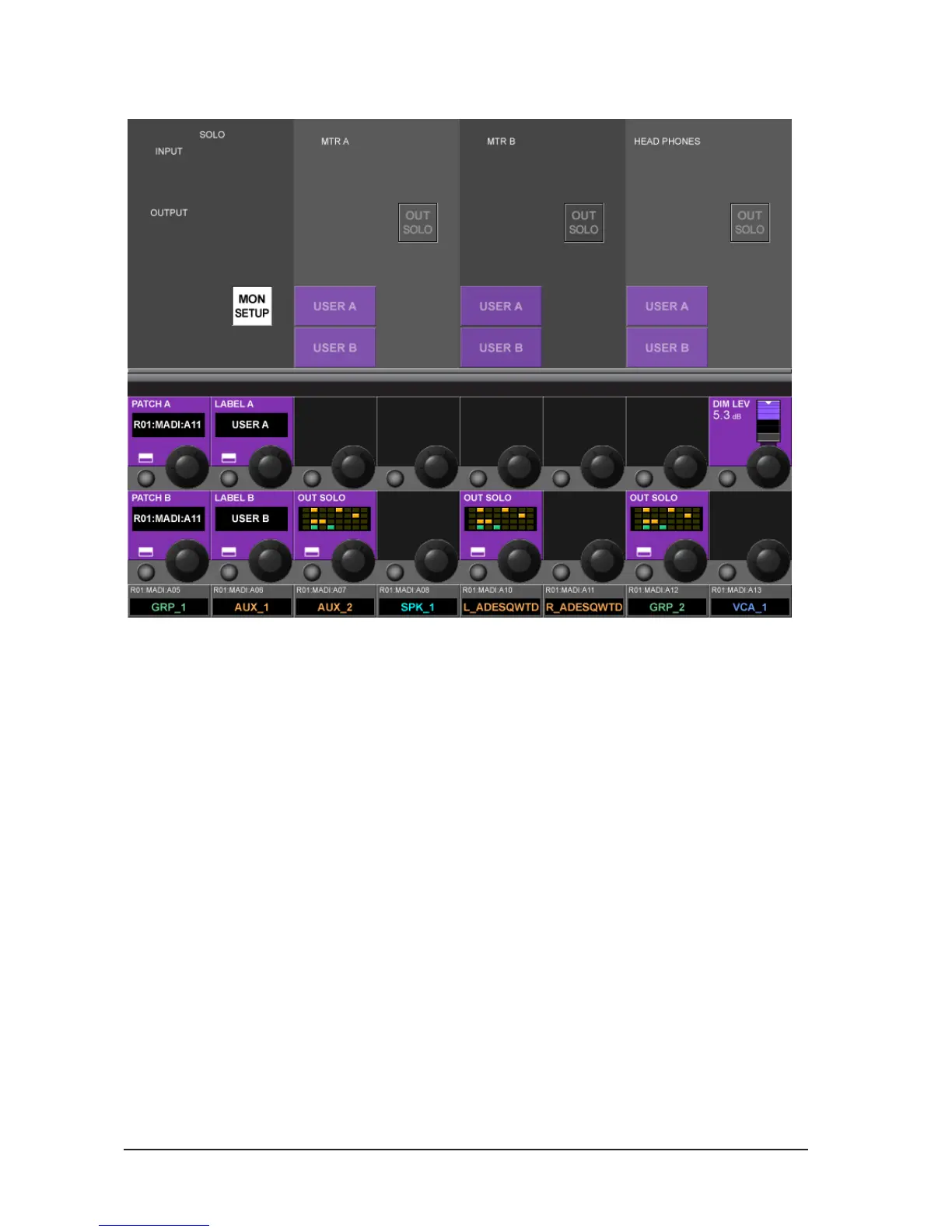

Figure 11-6: Monitor Setup Sub-page.
PATCH A field
Displays the source name that is patched to USER A. Its {VST config button} opens the USER A patch
page (see Figure 11-7).
LABEL A field
Displays the USER A label. Its {VST config button} opens the USER A label configuration page, which
displays the internal keyboard, and allows the USER A label to be edited.
DIM LEVEL field
The encoder adjusts the DIM Level between 0 and – infinity. The DIM function is only activated if the
Return Talkback function is activated via the GPIO facility (see Chapter 16).
PATCH B field
Displays the source name that is patched to USER B. Its {VST config button} opens the USER B patch
page, which is similar to Figure 11-7.
LABEL B field
Displays the USER B label. Its {VST config button} opens the USER B label configuration page, which
displays the internal keyboard, and allows the USER B label to be edited.
