Soundcraft Vi6™ User Guide Page 8 - 5

VST Master Area

The VST Master Area allows all 32 Bus Masters to be accessed even if the 8 output faders are assigned to

control VCA Masters.

There are two layers of encoders: Page A displays busses 1-8 and busses 9-16, Page B displays busses

17-24 and busses 25-32. In the factory-default Front-Of-House Show, busses 1-16 are set as Aux, busses

17-24 are Groups, and busses 25-32 are set to Matrix.

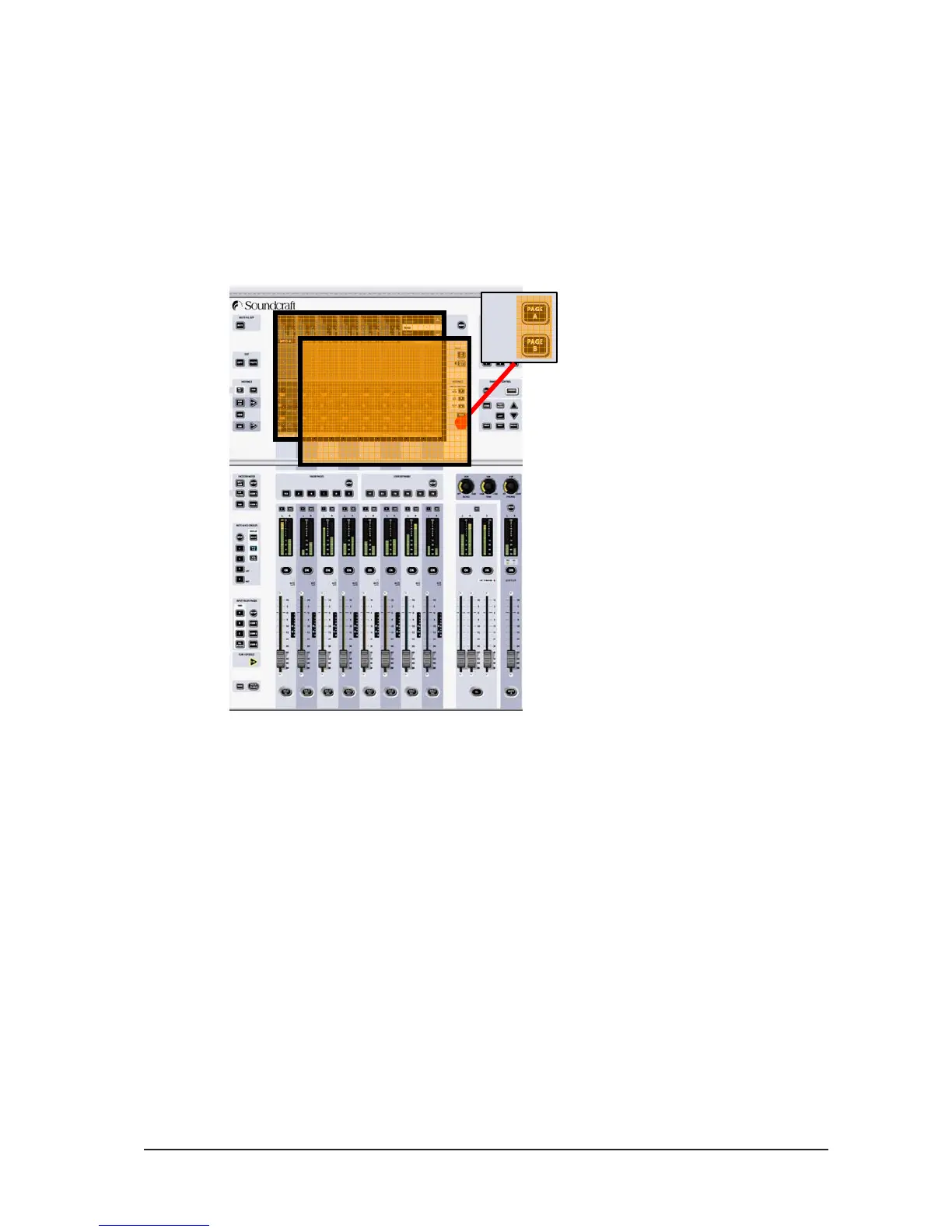

Figure 8-7: VST Master Area.
