Soundcraft Vi6™ User GuidePage 15 - 6
RECORDED DATA
As was mentioned previously, some settings are recorded as part of a Show, others as part of a Snapshot,
and a few are not recorded at all. The following diagram (Figure 15-5) shows how this is done.

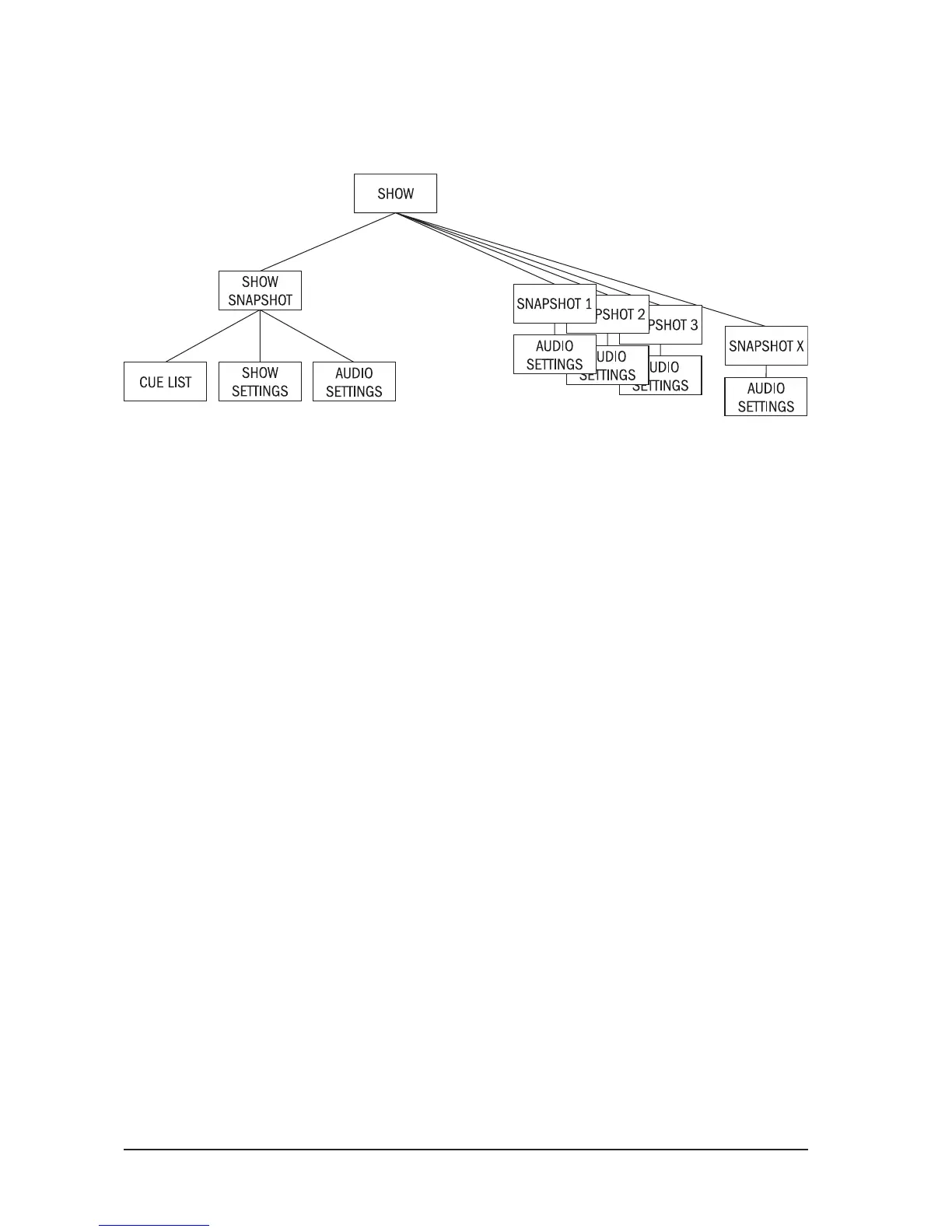

Figure 15-5: Recorded Data Structure
Note that a Show has one Show Snapshot. This Show Snapshot is generated automatically, and it cannot
be seen by the user. It holds the Cue List, the Show Settings and Audio Settings. These three sets of data
contain all of the parameters which change when a Show is loaded.
The Show Snapshot’s Audio Settings contains all the settings which a standard Snapshot can store; as a
result, the Show Snapshot can be thought of as the last settings before the Show was unloaded. The Show
Snapshot allows the complete status of the console to be recorded with the Show, even if no Snapshots
have been saved.
Settings Recorded Within A Show Snapshot’s Show Settings
Monitoring Settings: Monitor Level; Phones Volume; Solo Trims; Solo Blend; Monitor A/B Switch Status;
Monitor On/Off Switch Status; Monitor Source Selection Status; Monitor Setup states.
All switches in Talkback section.
Talkback Settings: Talkback Levels; Talkback setup.
Generator Settings: OSC Level, Type.
Mute Safe Status (Input & Output).
System Preferences: Current Sample Rate; Sample Clock Settings.
Automation Setup States.
VCA / MG Assign View switches status: Currently selected view.
Bus Config States: Bus Formats; Bus Types and Bus Labels.
Channel Pairing States: Stereo Channel pairings.
HiQnet Setup.
MIDI Configuration Setup: MIDI Channel names.
ISO switch status (Input & Output).
O/P Vistonics Lock Mtr switch status.
O/P Vistonics Solo/OnOff/TB switches.
All parameters in the menu/settings page.
Follow Solo switches.
