Soundcraft Vi6™ User Guide Page 5 - 3
L,R & C Master Processing

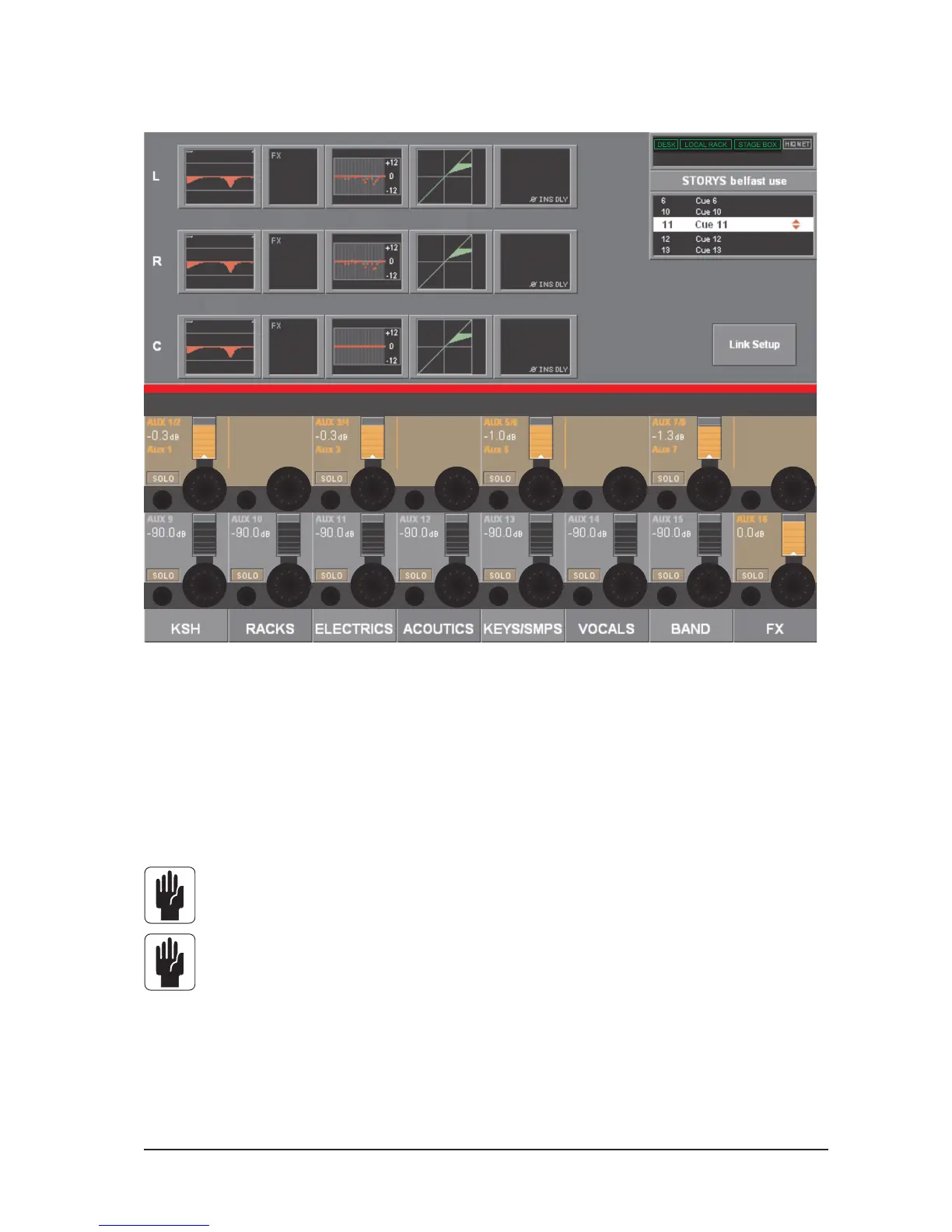

Figure 5-2A: Master Screen Displaying The Master Busses Processing Page.
This page is accessed by pressing the [SEL] key which is located below the L, R & C master faders.
The Master processing fields are shown in the Meter Area of the Master Screen.
In order to change the parameters for EQ, Dynamics or Pan, the appropriate area on the touch-screen must
be pressed; doing so will open a page whose VST area is similar to the lower half of Figures 5-9, 5-10 or
5-11.
Note: When selecting the PAN area, the page which will be displayed will be similar to Figure 5-
11 except that the PAN, MASTER LR and MASTER C fields will not be present.
Note: The output levels of the L R & C Master outputs are always controlled by their dedicated
faders.
