Soundcraft Vi6™ User GuidePage 4 - 8
EQUALISER

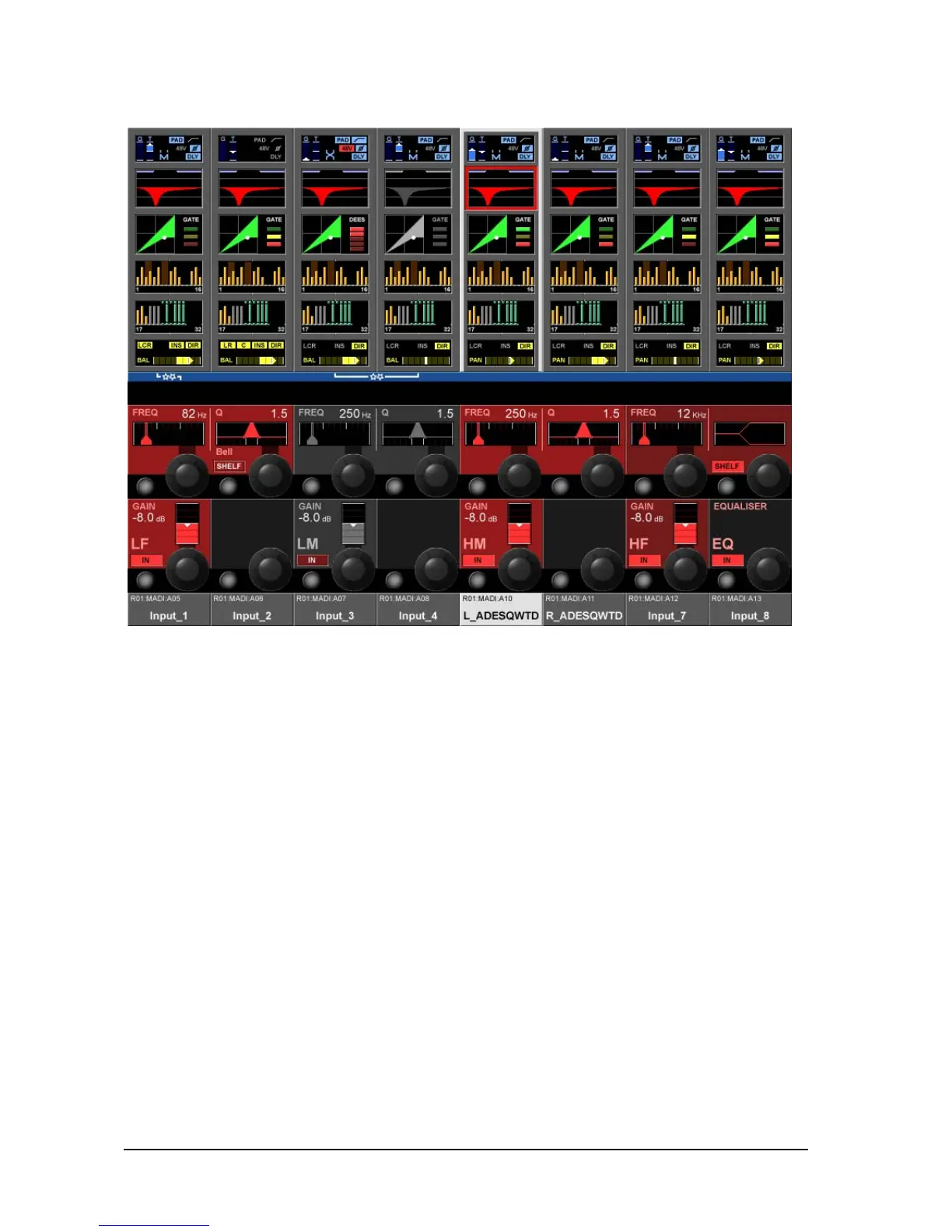

Figure 4-8: The Equaliser Page.
General
The Equaliser contains 4 full parametric Bands. All four parametric Equaliser Bands operates over the full
frequency range. The characteristics of the LF and HF bands can also be set to SHELF mode.
The red Equaliser Graph in the Equaliser touch field represents the overall frequency curve. It contains:
* Low Cut and High Cut Filters
* Equaliser with the 4 bands
Additionally, two blue bars at the top of the Equaliser touch field clearly indicate the Low and High Cut filter
frequencies. (The filters are adjusted from within the INPUT Vistonics™ II page.)
