NOTE ON INSTALLATION OF THE COOLING FANS/FILTERS
The Stage Box and Local Rack may be ordered already fitted into flight cases, in which case the cooling
fans/filters will already be located correctly as shown in the diagrams below.
If the system has been ordered without flightcases, in order that it can be permanently installed, please
ensure that the cooling fans/filters are located as shown below.
Local Rack

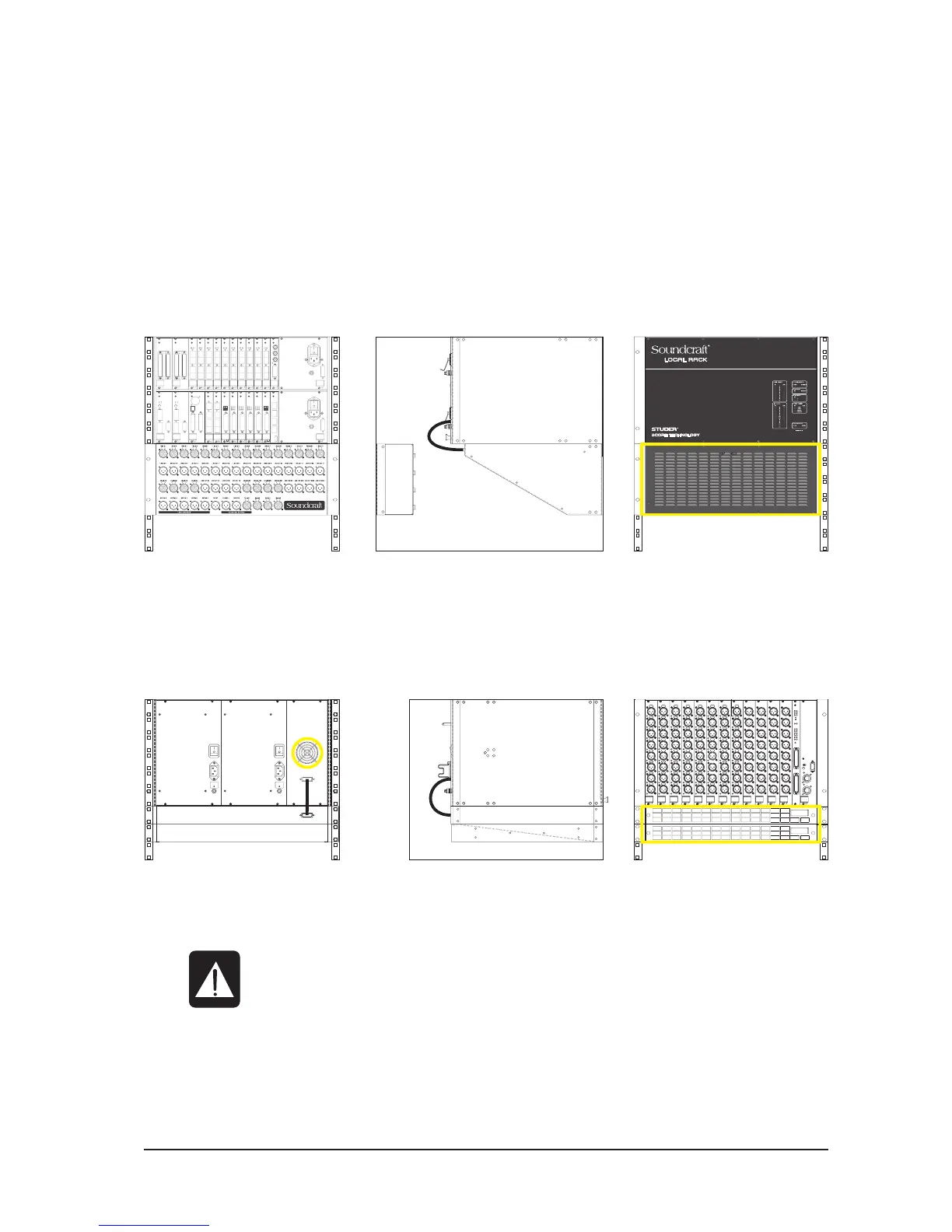

Figure 2-2a: Layout Of Local Rack.
Stage Box
Figure 2-2b: Layout Of Stage Box.
NOTE: Ensure fan units on Local Rack and Stagebox are connected and operational.
CLEAN FILTERS REGULARLY!
The filters are outlined in yellow in the figures above.
