Soundcraft Vi6™ User Guide Page 3 - 5
Channel Labels
By default the channels are labelled CH-1 to CH-64.
Soundcraft VI6™ uses long labels for the Screens and short labels for the LCDs. Long labels can contain
up to 10 characters, whereas short labels are restricted to 6 characters.

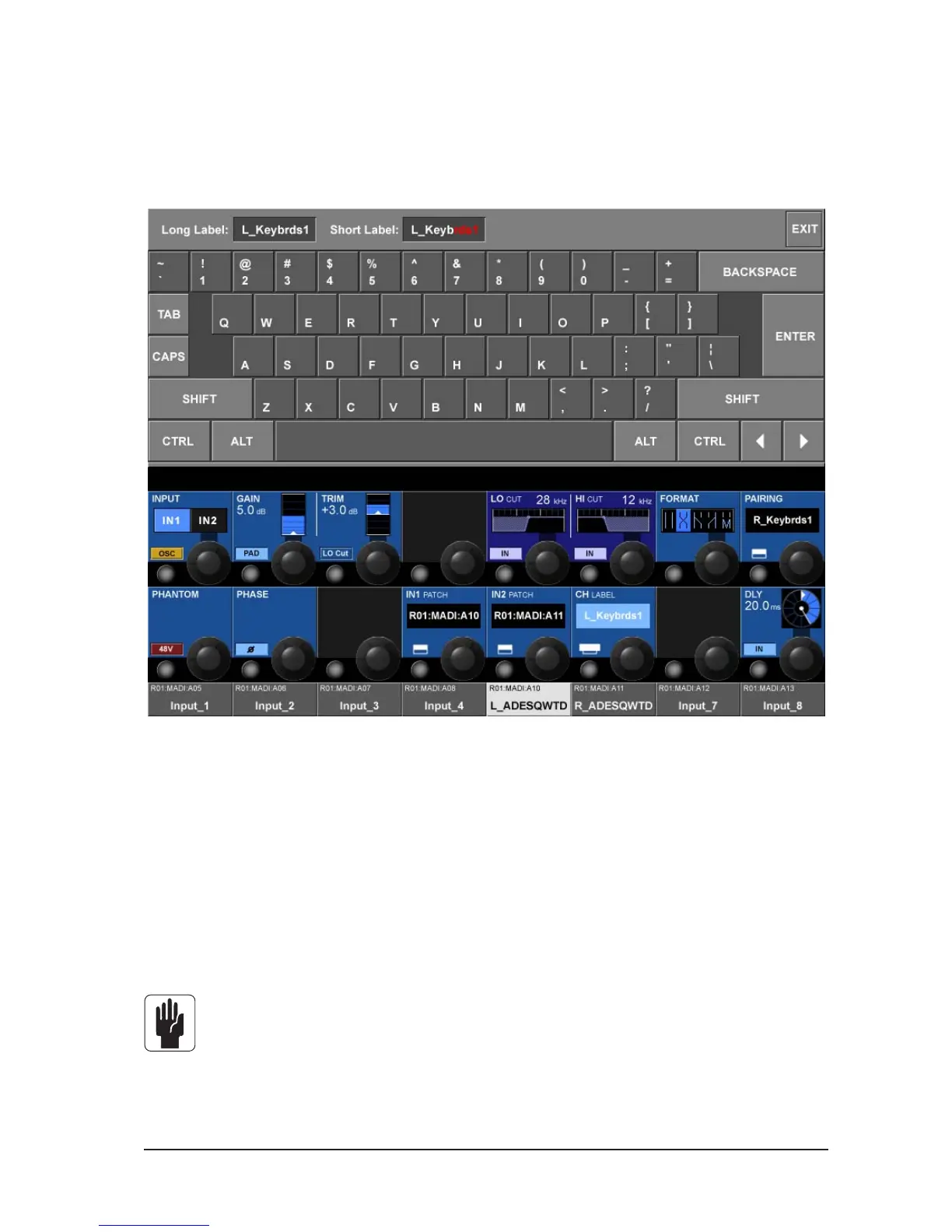

Figure 3-4: The Channel Label Page.
Changing The Channel Label
* Press the <INPUT> touch field to open the Input Page.
* Enter the channel label page by pressing {CH LABEL} on the Input Page.
* Type the long name (only valid characters are possible).
* Adjust the short name if necessary by touching the <Short Label> on the screen or by using
<TAB>.
* Leave the page with <ENTER>, or by pressing {CH LABEL} again.
<TAB> toggles the cursor between long and short fields.
