Soundcraft Vi6™ User GuidePage 1 - 8
CONSOLE OVERVIEW
Bays
The Desk is based on 5 bays:
* 4 INPUT bays
* 1 MASTER bay

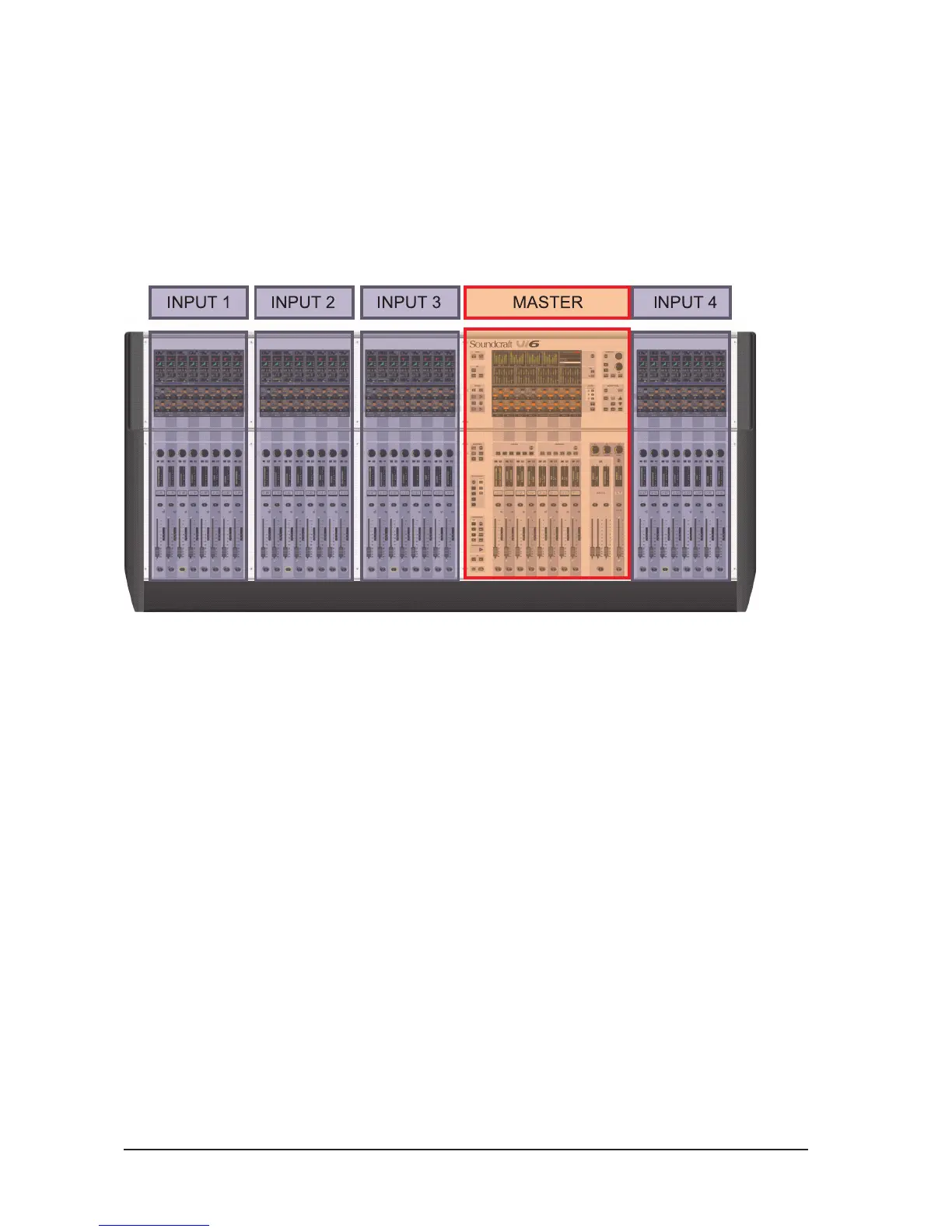

Figure 1-1. Console Bays.
* Each Input bay contains 8 complete Fader strips with full state overview, giving in total 32 directly
accessible Input Strips.
* The Master bay contains 8 Output Fader strips, the 3 Masters and 16 Output encoders that give a total
of 27 Output levels that can be directly controlled without changing Layers. General Functions like Snap-
shot, Monitoring, TB & OSC and so on are also located on the Master bay.
