Soundcraft Vi6™ User Guide Page 7 - 5
MASTER BAY PANEL ENCODERS
The master bay has four panel-mounted encoders with LED rings (see Figure 7-1B): the TB/OSC Level
Control encoder, and the Sold Blend, Solo Trim & Phones Volume encoders. These are all dedicated to their
respective functions. A description of their functions is given in chapter 9 of this manual.
MASTER BAY VST ENCODERS

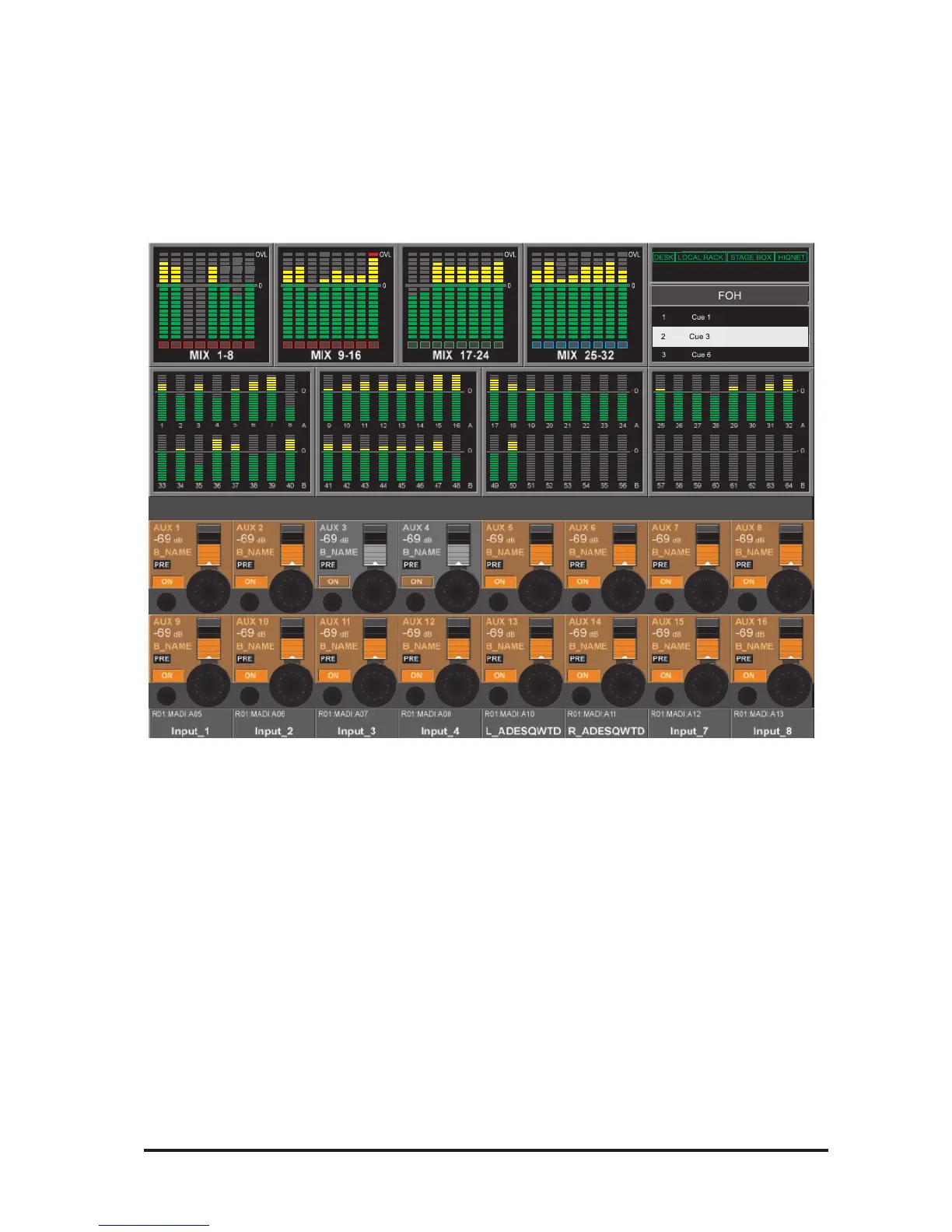

Figure 7-5: Default Master VST Encoder Assignment.
The default setting for the Master VST encoders is as the output level controls for Master Outputs 1-16.
This can also be selected by pressing the [PAGE A] key on the Master Vistonics Mode Panel (see Figure 7-
6). Pressing [PAGE B] will cause the Master VST encoders to be assigned as the output level controls for
Master Outputs 17-32.
The Master VST encoders can also be assigned to Master Output Expanded Functions (e.g. EQ, Dynamics,
etc.). When a Master Output [SOLO/SEL] key is touched, it opens the Processing Area in the Master VST
screen. If then a paticular touch-area is touched, the VST encoders are assigned to appropriate expanded
functions. These functions are all described in detail in chapter 5 of this manual.
HINT: [METER LOCK] must not be enabled, otherwise the Processing Area will not be displayed. If multiple
Output Solos are activated, the parameters for the LAST soloed Master are displayed.
