Soundcraft Vi6™ User Guide Page 17 - 1
SOUNDCRAFT FaderGlow ™
GENERAL
Soundcraft FaderGlow™ (Pat. Pend.) is a unique feature that gives the user an additional level of status
indication, and can significantly reduce operating errors.
On the console, several different functions can be assigned to a particular fader, it can therefore be easy
to forget which function is currently being controlled, especially when grabbing a fader in a hurry.
The main principle of the Soundcraft FaderGlow is therefore to indicate the actual function type that is
currently assigned to a particular fader.
Soundcraft FaderGlow is fitted to all 40 Faders that can change their function.

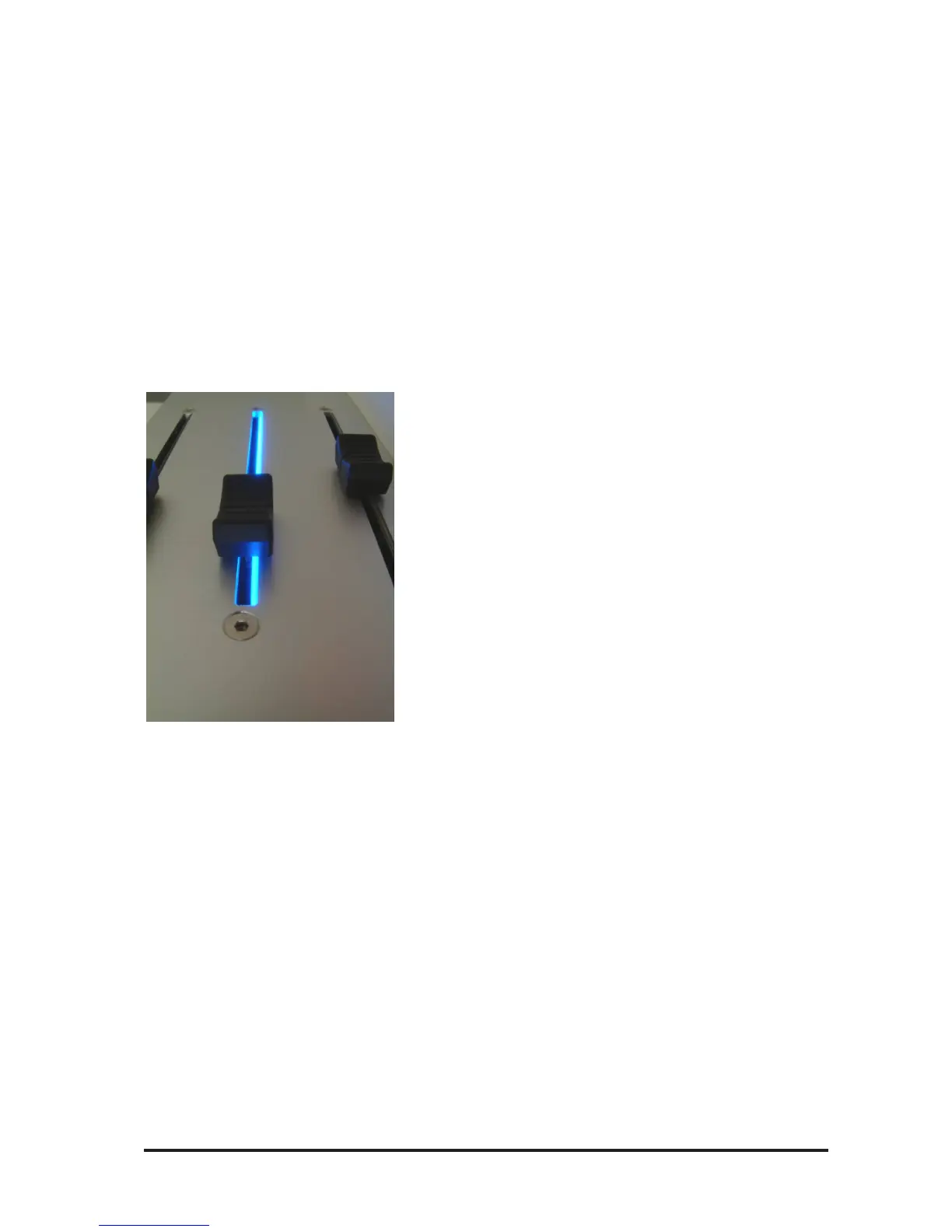

Figure 17-1: FaderGlow™.
Colour Code
FADER OPERATION Soundcraft FaderGlow™ COLOUR
Channel level NONE
AUX send level ORANGE
GRP (fader closed) GREEN
MTX contribution level CYAN
VCA Master 1..8 BLUE
VCA Master 9..16 PINK
