Soundcraft Vi6™ User Guide Page 6 - 1
MATRIX
SIGNAL FLOW

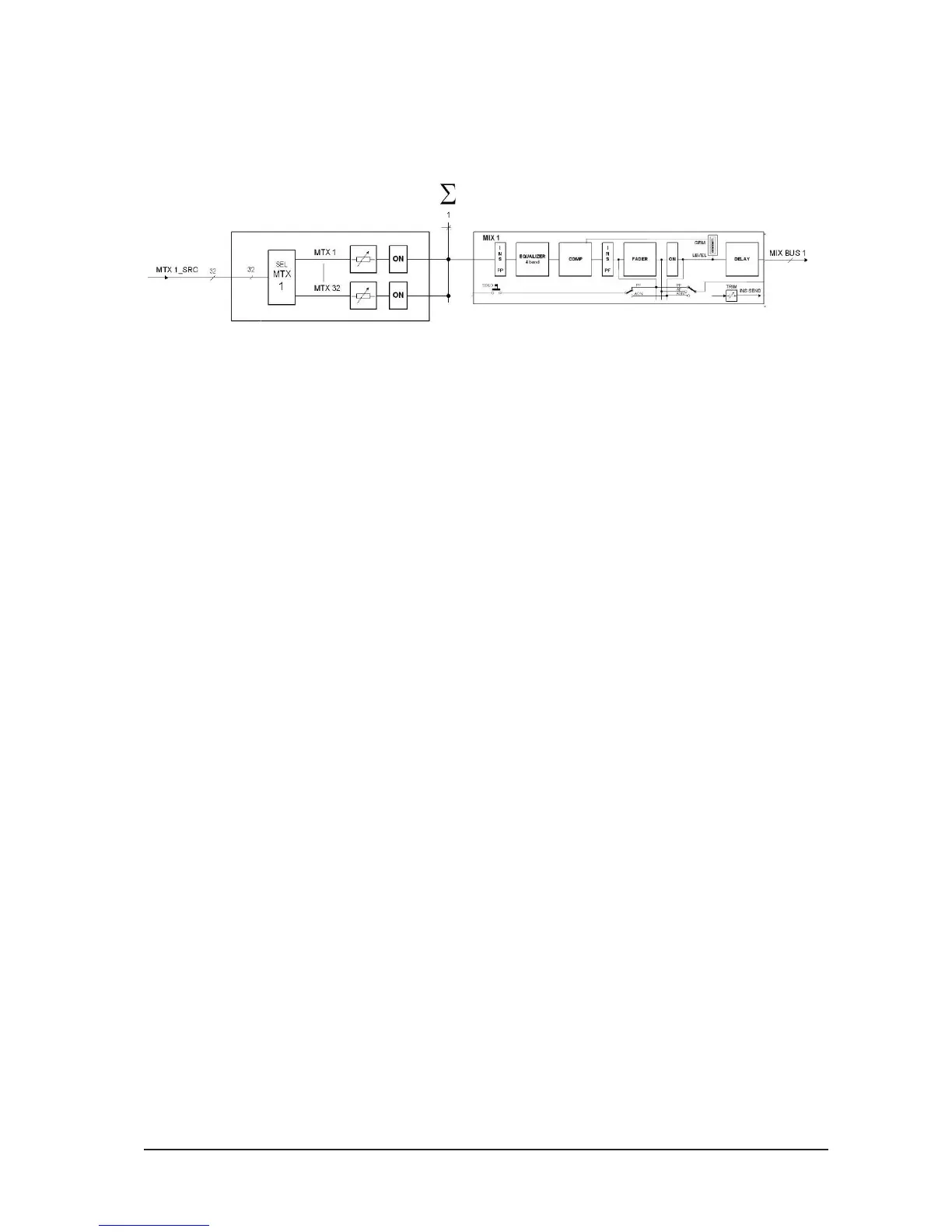

Figure 6-1: Matrix Signal Flow.
Only one of up to 16 matrix paths is visible in figure 6-1.
FUNCTION
Instead of a simple Output matrix Soundcraft VI6™ has a built-in freely-configurable matrix that can have
up to 16 Outputs (mono).
Each matrix output is a mix of up to 32 configurable sources and contains full processing including Equal-
iser, compressor/limiter and Delay.
Sources to the Matrix can be signals from busses, channel direct outputs or inputs.
Hint: The sources for each matrix out can also be individually patched, the matrix can be utilized as 16
different mixers, each with up to 32 inputs, with output processing.
