Soundcraft Vi6™ User GuidePage 21 - 4
ASSIGNING FX PROCESSORS
Vi6 supports three different ways to patch an FX processor:
• Insert in an Input Channel
• Insert in a Bus Master
• Patch as an FX return
Channel Insert
This Mode is used for Channel effects.

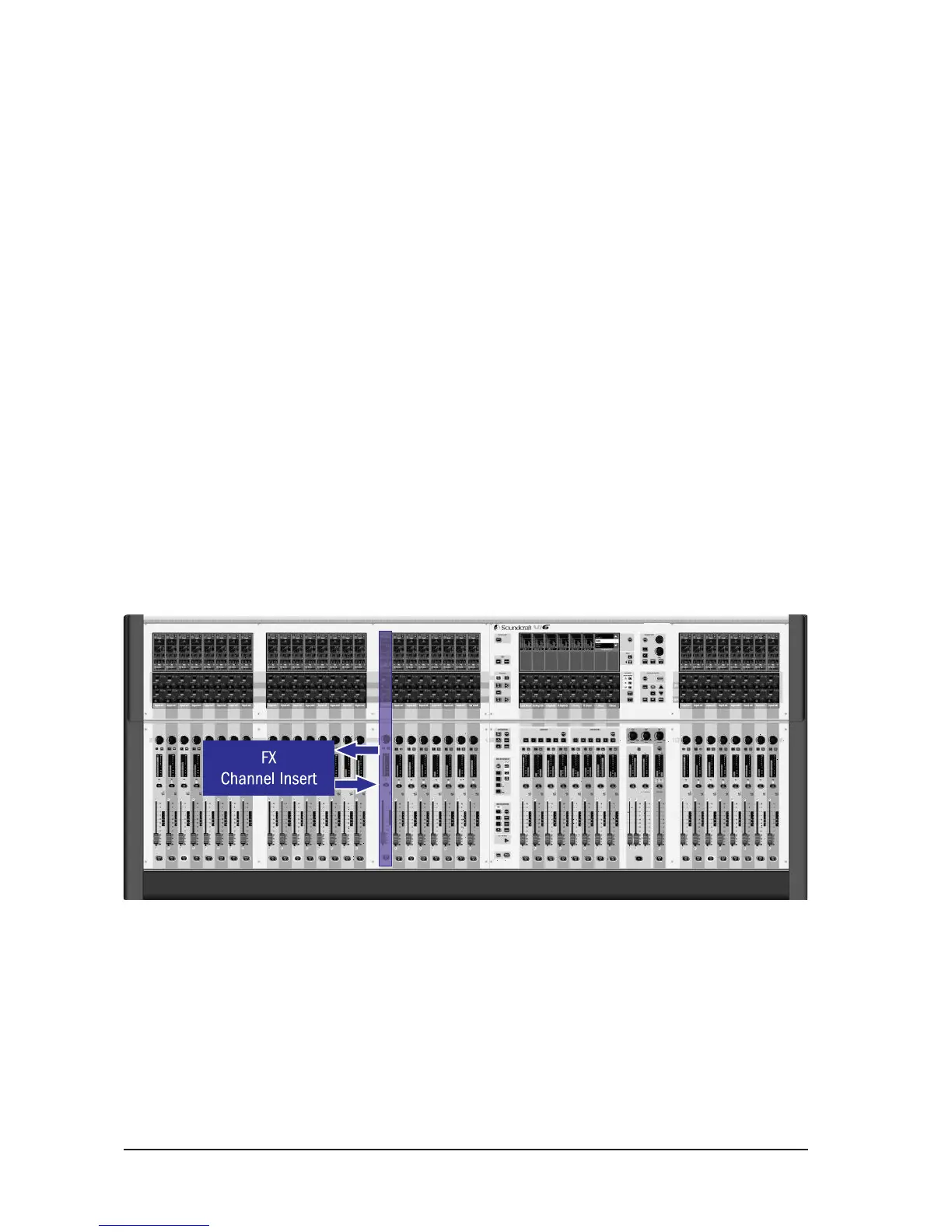

Figure 21-4: FX Channel Insert.
Insert a FX processor in a Input Channel
Touch the VST screen’s <PAN> area for the required Input Channel (see Figure 4-13).
Press the {INSERT} key to open the Insert Pool select page (see Figure 21-5).
Changing the assignment of F-keys to TAP function
The first 2 Lexicon units LEX1 and LEX2 have their Delay TAP buttons assigned to F1 and F2 by default
because these settings are stored within the read-only factory default Shows (updated with V2.0 software
release).
In order to assign the TAP functions of more FX units to the F-keys, proceed as follows:
. Press the [MENU] button and select the {GPIO} menu tab.
. Ensure the {LOCAL I/O} button is selected and scroll the input and output sections down to
the VGPI and VGPO Pin settings. For LEX3, select VGPI Lex Tap3 and VGPO Lex Tap3.
. Set the parameters for the VGPI and VGPO as shown in the above picture, and ensure the
input and output are switched ON.
Use a similar procedure for other FX units. Up to 6 of the 8 units can be assigned to F1-6 using this
method. The settings will be stored when you save the current Show.
