SPECTRA PRECISION FOCUS 2 SERIES TOTAL STATION USER GUIDE
6 – Menu Key
105

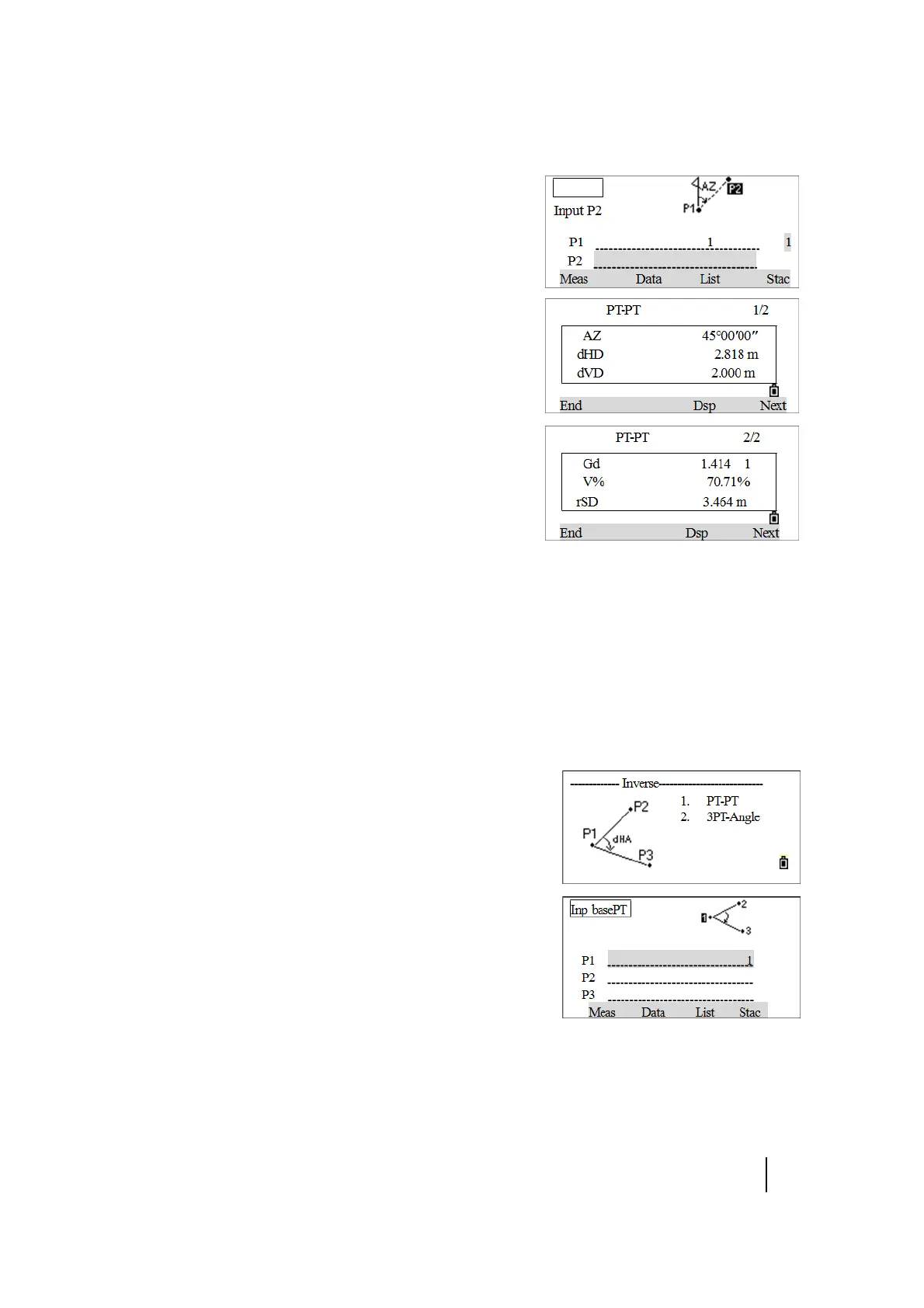

3. Enter the name of P2.
The azimuth, horizontal distance, and vertical distance
from the first point to the second point are displayed.
Press
DSP to switch between the two pages.
4. To:
– Continue in PT-PT, press NEXT.
– Quit, press END.
– To change the contents of the result screen, press
[DSP].
3PT angle
The 3PT angle calculates the angle between two lines defined by three points. PT1 is the base point.
Two lines must be defined by P2 and P3, both from P1.
1. From the Inverse menu, press [2] (or press [v] and [REC/ENT])
to select 3PT-Angle.
The Inp basePT screen appears.
2. Enter the name of base point P1 and press [REC/ENT].
For the input method, see Step 2 of the Inverse PT-PT
method on page 104.
3. Enter the second point (P2) to define the baseline (P1-P2)
and press
[REC/ENT].
4. Enter the third point (P3) to define the second line (P1-P3) and press [REC/ENT].
Gd Grade (HD/VD)
V% 100/Gd
rSD Slope distance PT1 to PT2
