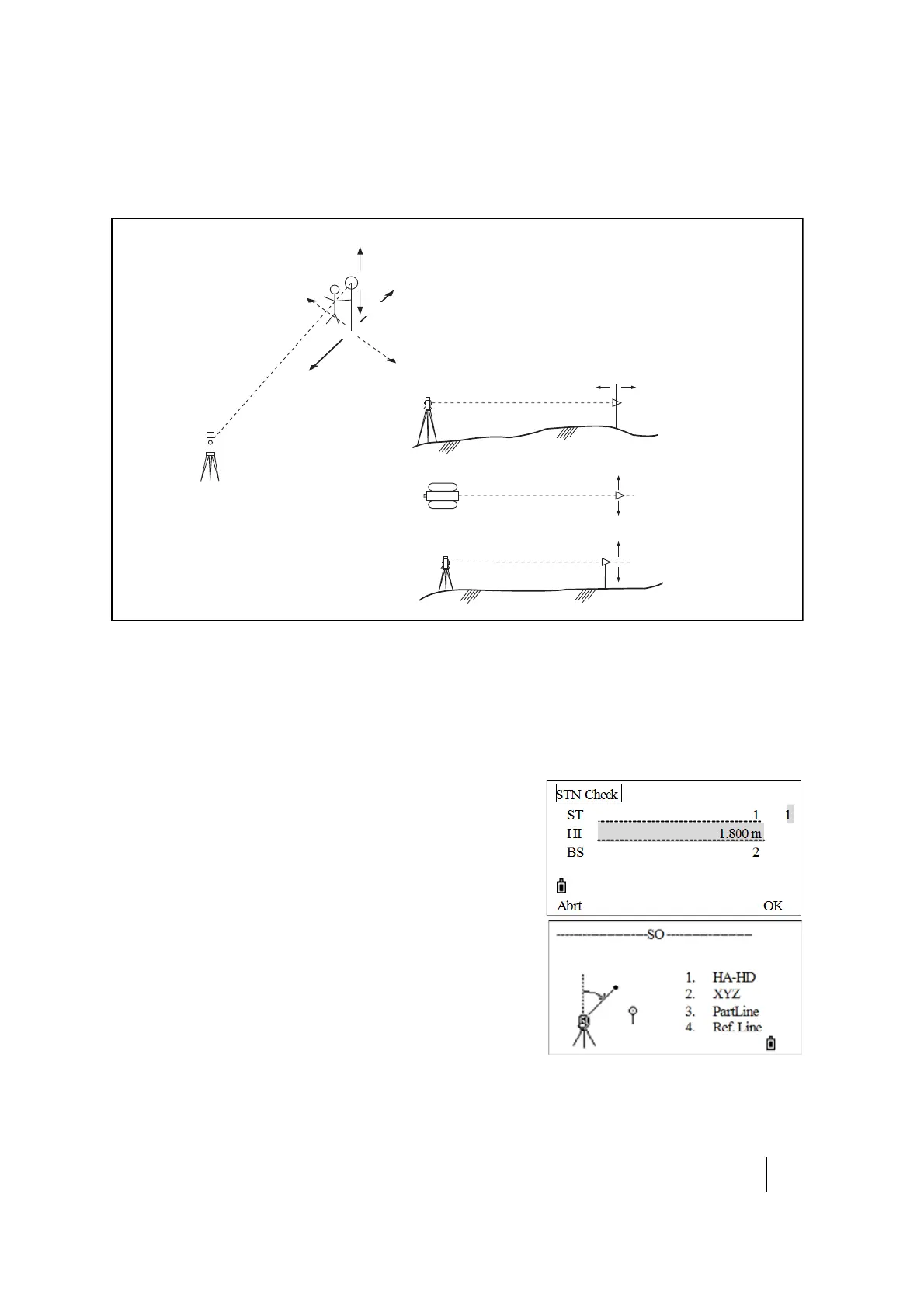

Stakeout key
To display the Stakeout menu, press [S-O].
Stakeout by angle and distance
1. Press [8] to enter the stake-out function. A station setup and backsight azimuth must be set
before stakeout. If this is not done, a Station not set message is displayed.
2. Press [1] to continue. This displays the ST, HI, and BS set in
the last operation. Press the
OK softkey to confirm or
press the
Abrt softkey to quit the program.
After the program records the STN data, the screen
returns to the SO menu.
3. Press [1] or select HA-HD to display the input screen for
the distance and angle to the target.
4. Enter the values and press [REC/ENT].
HD Horizontal distance from station point to stakeout point
dVD Vertical distance from station point to stakeout point
HA Horizontal angle to stakeout point
R
IN
L
OUT
CUT
FiLL
IN OUT
Height
of target
R
L
FILL
CUT
