SPECTRA PRECISION FOCUS 2 SERIES TOTAL STATION USER GUIDE
6 – Menu Key
107

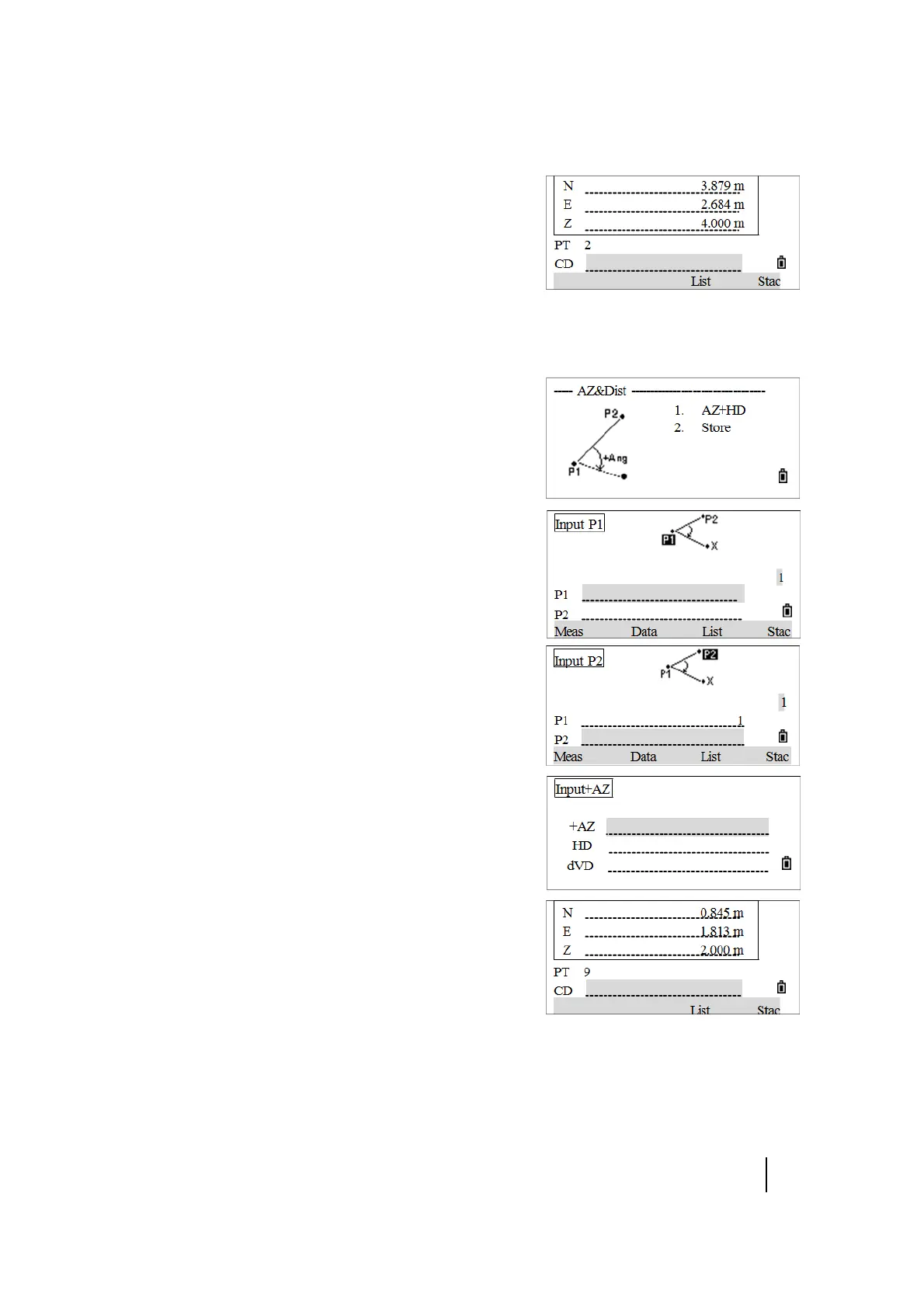

A recording point screen with the calculated coordinates
appears. PT defaults to the last recorded PT
+ 1.
5. Enter the code (CD) and then press [REC/ENT] to store the
point.
Store
The store function calculates a new point based on two defined points and angle, horizontal, and
vertical distances from the line defined by those two points.
1. From the AZ&Dist menu, press [2] (or press [v] and
[REC/ENT]) to select Store.
The Input P1 screen appears.
2. Enter the point name P1 and then press [REC/ENT].
For the input method, see Step 2 of the Inverse PT-PT
method on page 104.
The Input P2 screen appears.
3. Enter P2 and then press [REC/ENT].
The Input+AZ screen appears.
4. Enter the plus-minus angle, horizontal distance (HD), and
vertical distance (dVD) from the baseline defined by P1-
P2. If you do not enter a value in the dVD field, the value
0.0000 is used.
5. When [REC/ENT] is pressed in the dVD field, a new point is
calculated. The PT name defaults to the last recorded PT
+ 1. Press
[REC/ENT] to record the point.
6. The screen returns to the point input screen. P1 (base
PT) defaults to the previously recorded PT. P2 defaults to
the previous P1.
