MlmRadial

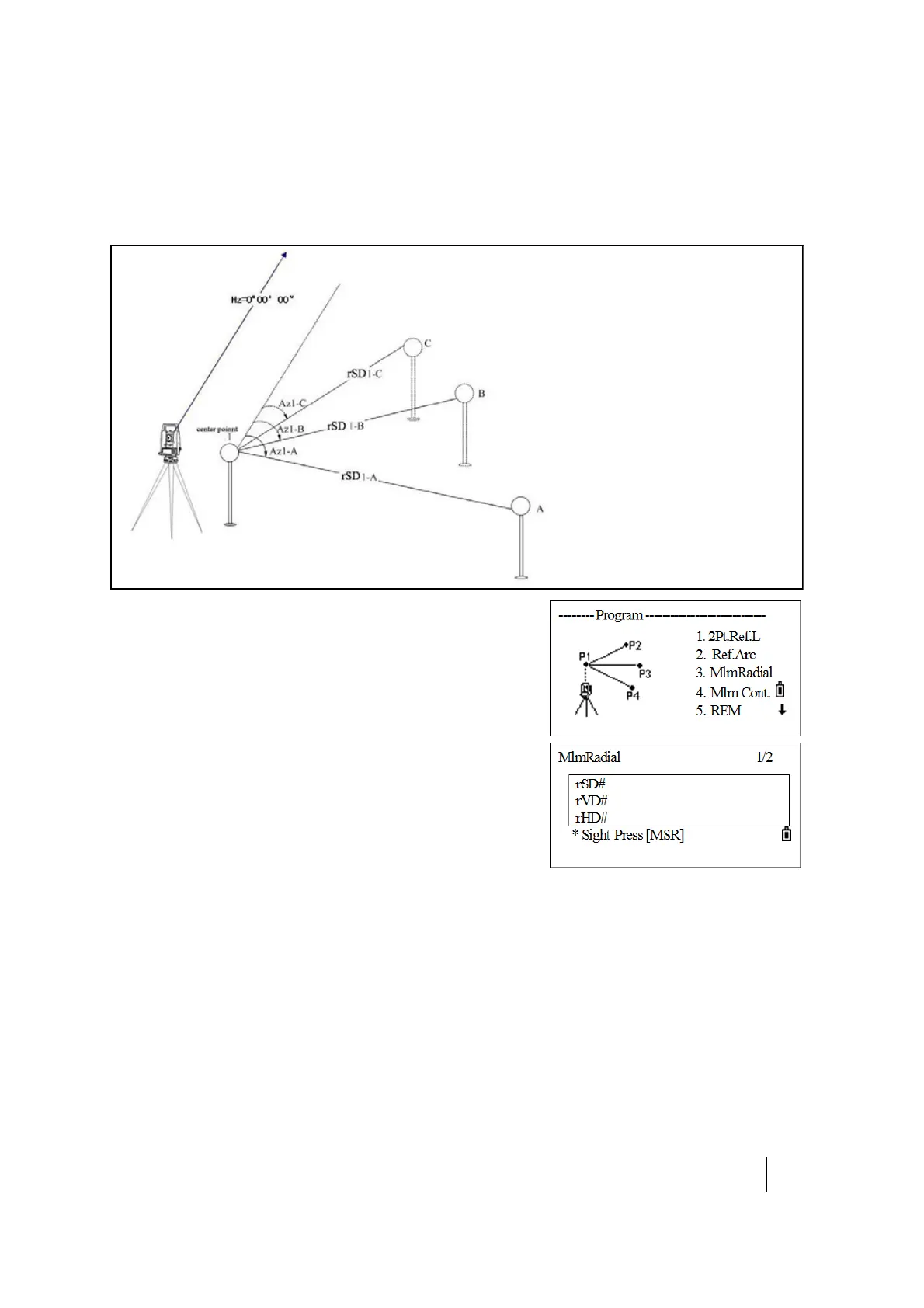

Measuring between the current and the first point measured.
1. From the Program menu, press [3] (or press [v] and
[REC/ENT]) to select MlmRadial.
The MlmRadial screen appears.
2. Sight the first point and press [MSR1] or [MSR2].
The distance from the station point to the first point is
displayed.
3. Sight the second point and press [MSR1] or [MSR2]. The
distances between the first and second point are
displayed.
4. To change display screens, press [v].
rSD Slope distance between two points
rVD Vertical distance between two points
rHD Horizontal distance between two points
rAZ Azimuth from first point to second point
rV% Percentage of grade (rVD/rHD) × 100%
rGD Vertical grade (rHD/rVD)
