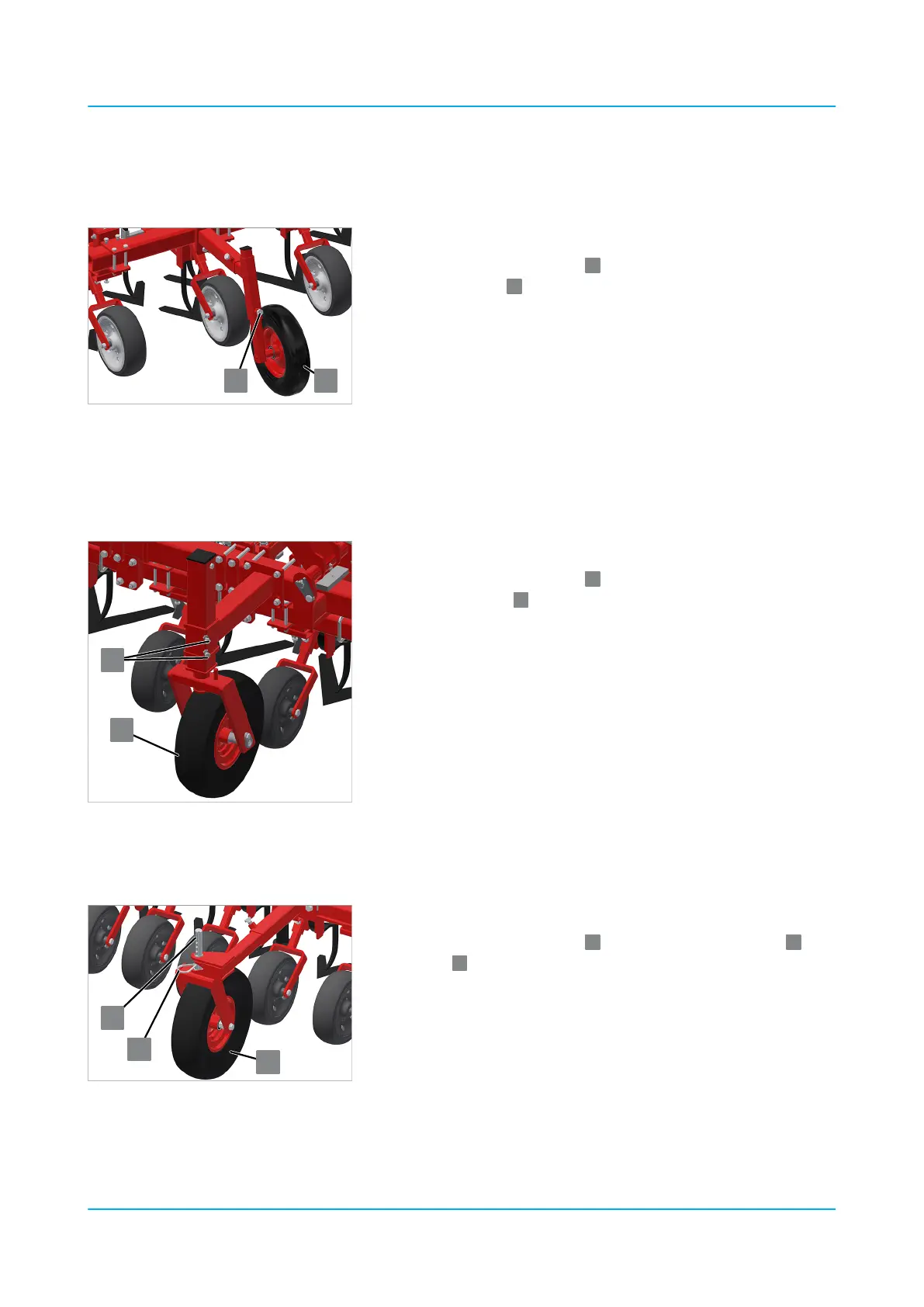

Front mounted: Basic-Elements
The height of the support wheel
1
is xed on the mounting tube using
one clamping screw
2
.
1. Undo the clamping screw.
2. Measure the distance.
3. Slide the support wheel to the desired height.
4. Tighten the clamping screw.
Front mounted: Basic-Elements
The height of the support wheel
1
is xed on the mounting tube using
two clamping screws
2
.
1. Undo the clamping screws.
2. Measure the distance.
3. Slide the support wheel to the target position.
4. Tighten the clamping screws.
Front mounted: Basic-Elements
The height of the support wheel
1
is xed in the mounting rod
2
using a peg
3
.
1. Remove the peg.
2. Slide the support wheel to the desired height.
3. Fix the peg.
Support wheels with one clamping
screw
12
1
Support wheel
2
Clamping screw
Support wheels with two clamping
screws
1
2
1
Support wheel
2
Clamping screws
Support wheels with peg
1
2
3
1
Support wheel
2
Peg
3
Mounting rod
