Instruction Manual
for
AS380 Series Elevator Integrated Drive Controller
82

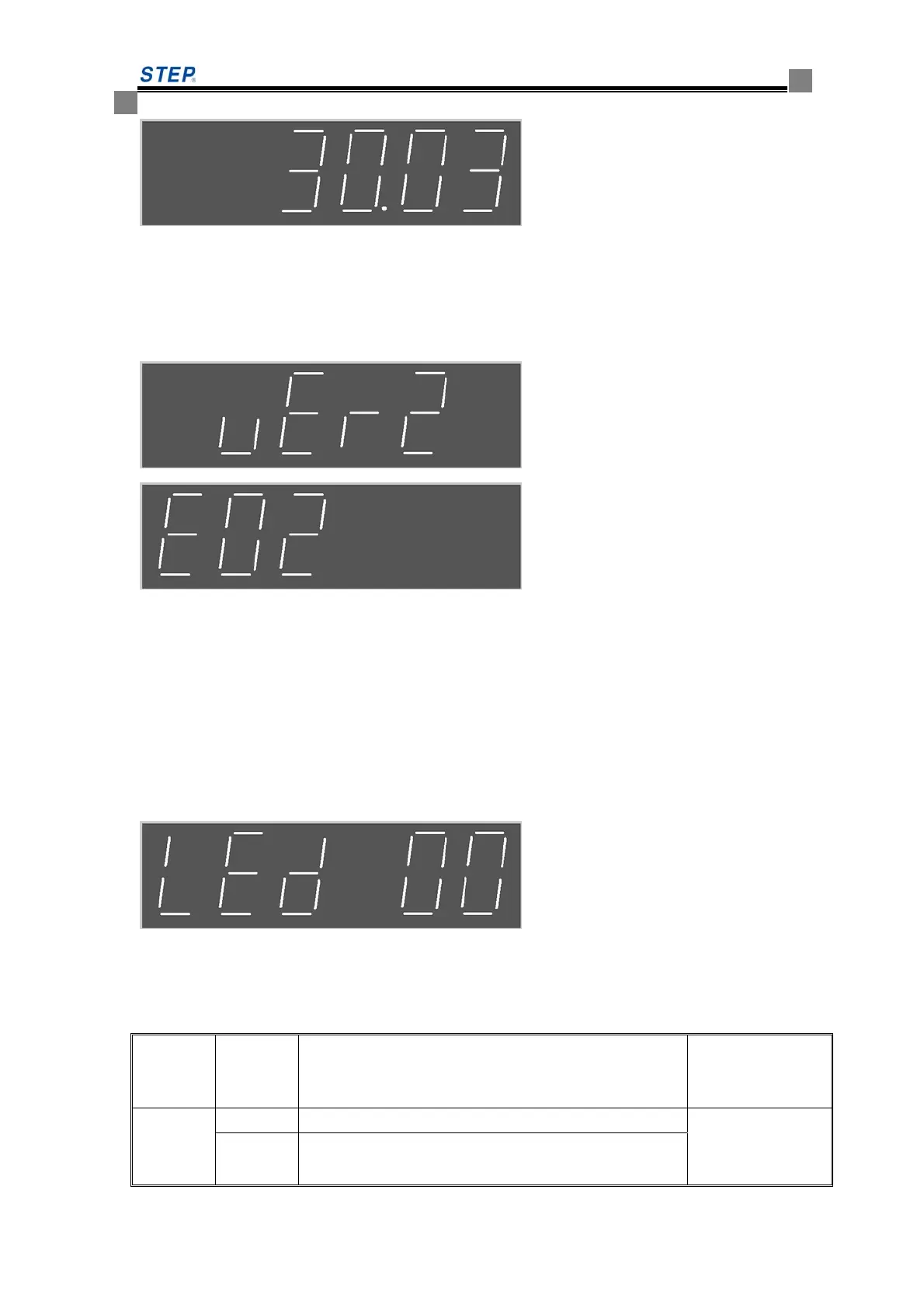

The menu shows the program version of drive part of integrated unit. The screen will display the
program version 30.03 after 1 second waiting. Then the word ver1 and 30.03 will alternatively
display, each of which will last for 1 second
23 control program version
The menu shows the program version of control part of integrated unit. The screen will display
the program version E02 of the control part one second later, as per the above picture. Then the
words VER 2and E02 will alternatively display, each of which will last for 1 second.
5.1.3.3 Use Menu to switch among various menus
Under any circumstance press the menu button to switch between LED function selection
and door open/close control. Press ESC to return to the elevator status interface. The following is
the detailed description of those menus
1. LED function selection
Use up and down button to select the definition code of 18 LED indicator light L1-L8. press enter
button to confirm. The LED indicator light will change as per the code definition. The definition
code of L1-L8 is as following table 5.5
Table .5.5 L1-L8 display content selection
Nixie
tube
display
luminous
diode
code
Display content remark
LED 00
L1 door lock relay output signal Maintenance
running startup
condition, all 8
L2 main contactor contact input signal( no contact adhesion
and light on )
