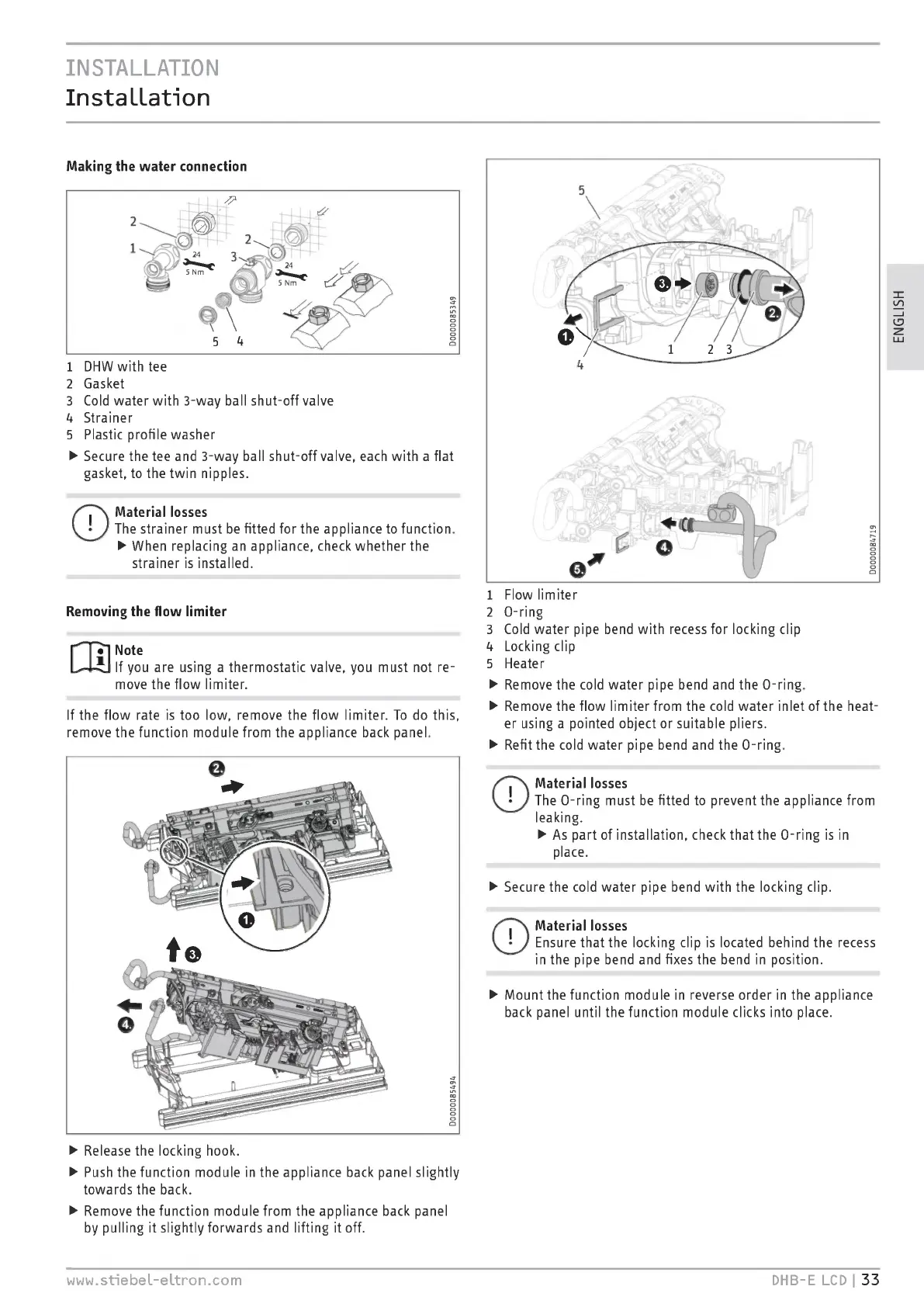

INSTALLATION
Installation
Making the water connection
1 DHW with tee
2 Gasket
3 Cold water with 3- way ball shut-off valve
4 Strainer
5 Plastic profile washer
> Secure the tee and 3- way ball shut-off valve, each with a flat
gasket, to the twin nipples.
Material losses
The strainer must be fitted for the appliance to function.
> When replacing an appliance, check whether the
strainer is installed.
Removing the flow limiter
Note
If you are using a thermostatic valve, you must not re-
move the flow limiter.
If the flow rate is too low, remove the flow limiter. To do this,
remove the function module from the appliance back panel.
> Release the locking hook.
> Push the function module in the appliance back panel slightly
towards the back.
> Remove the function module from the appliance back panel
by pulling it slightly forwards and lifting it off.
1 Flow limiter
2 0-ring
3 Cold water pipe bend with recess for locking clip
4 Locking clip
5 Heater
> Remove the cold water pipe bend and the 0-ring.
> Remove the flow limiter from the cold water inlet of the heat-
er using a pointed object or suitable pliers.
> Refit the cold water pipe bend and the 0-ring.
C)
Material losses
The 0-ring must be fitted to prevent the appliance from
leaking.
> As part of installation, check that the 0-ring is in
place.
> Secure the cold water pipe bend with the locking clip.
O
Material losses
Ensure that the locking clip is located behind the recess
in the pipe bend and fixes the bend in position.
> Mount the function module in reverse order in the appliance
back panel until the function module clicks into place.
www.stiebel-eltron.com
DHB-E LCD I 33
