Stober SI6A062 - Fig. 31 TEP Output Choke Connection Example; Fig. 32 Shielded Connection of the Power Cable (Graphics: Icotek Gmbh)

STOBER 10 | Connection
02/2019 | ID 442728.05
139
M
X20
U
V
W
PE
1U1
1V1
1W1
7
1U2
1V2
1W2
8
1 3
2
PE 1 3
2
PE 1 3
2
PE

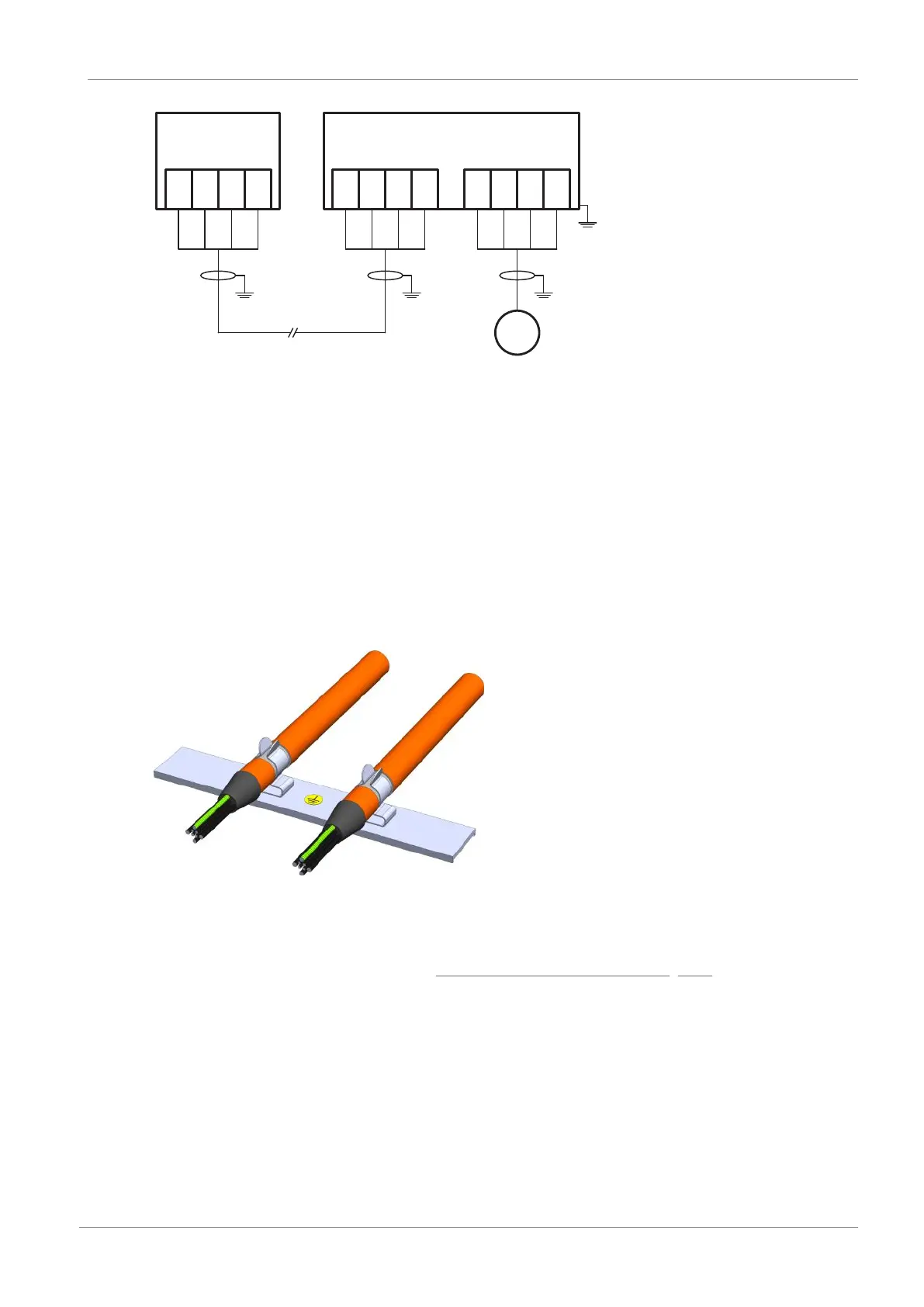

Fig.31: TEP output choke connection example
Shielded connection of the power cable
Note the following points for the connection of the power cable for a motor with output choke:
§ Ground the shield of the power cable over large contact areas in the immediate vicinity of
the output choke, for example with electrically conductive metal cable clips on a grounded
connection rail.
§ Keep the exposed conductors as short as possible. All devices and circuits that are sensitive
to EMC must be kept at a distance of at least 0.3m.
The following graphic shows an example of the shielded connection of the power cable.
Fig.32: Shielded connection of the power cable (graphics: icotek GmbH)
Choke housing grounding
Observe the requirements in the chapter CE-compliant housing grounding [}107] to ensure
correct connection of the grounding conductor.
