9.4 Drilling diagrams and dimensions
You can find drilling diagrams and dimensions for a multi-axis drive system with SI6 and PS6
and for accessories in the following chapters.
9.4.1 Multi-axis drive system
F
A/2
G
C
D E
B B
1 – 2
3
0
A/2

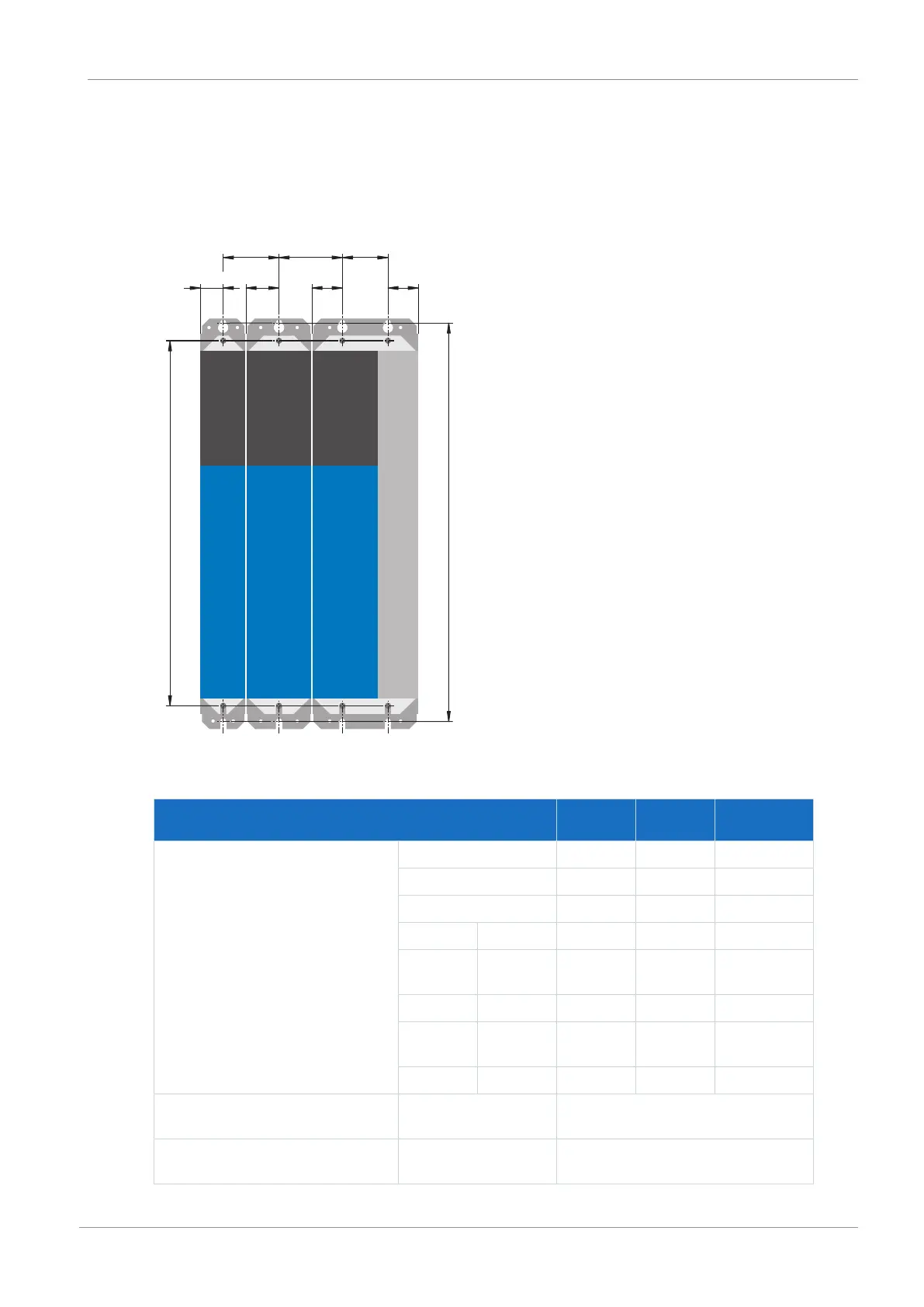

Fig.25: Drilling diagram for multi-axis drive system
DL6B dimensions Size 0 Size 1,
size 2
Size 3
Horizontal fastening holes
∅4.2 (M5)
A 45 65 —
B — — 30
E — — 45+0.2/−0.2
C Size0 46±1 56±1 —
C Size1,
size 2
56±1 66±1 —
D Size0 — — 53.5±1
D Size1,
size 2
— — 63.5±1
D Size3 — — 61±1
Vertical fastening holes
∅4.2 (M5)
F 393+2
Vertical distance for drive controllers
and supply modules
G 360
Tab. 80: Drilling dimensions for the multi-axis drive system [mm]
