STOBER 6 | Technical data
02/2019 | ID 442728.05
55

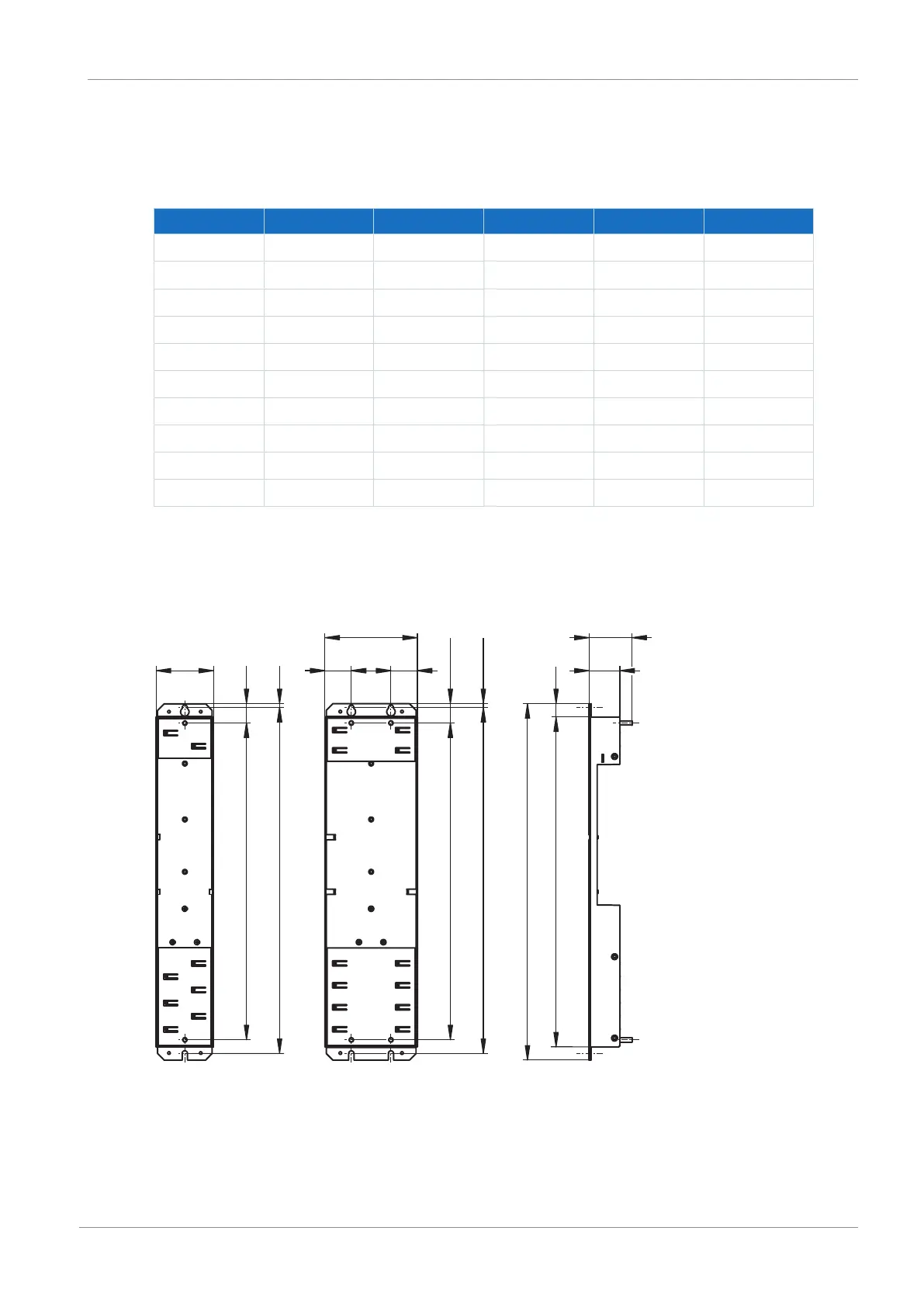

6.4.2 DL6B assignment – SI6 and PS6
DL6B is available in the following designs suitable for the individual drive controller types and
supply module types:
Type DL6B10 DL6B11 DL6B12 DL6B20 DL6B21
ID No. 56655 56656 56663 56657 56658
SI6A061 X — — — —
SI6A062 X — — — —
SI6A161 — X — — —
SI6A162 — X — — —
SI6A261 — X — — —
SI6A262 — — X — —
SI6A361 — — X — —
PS6A24 — — — X —
PS6A34 — — — — X
Tab. 46: DL6B assignment for SI6 and PS6
6.4.3 Dimensions
g
c
g
0 – 2 3
w
w
d2
b2
b1
d1
h2h1
h3
a1
a2
a1
a2
b2
b1
Fig.8: DL6B dimensional drawing
