Stober SI6A062 - Reforming before Commissioning; Fig. 21 Reforming before Commissioning

STOBER 8 | Storage
02/2019 | ID 442728.05
87
8.2.2 Reforming before commissioning
If reforming is not possible every year, institute reforming on stored devices before
commissioning. Note that the voltage levels depend on the storage time.

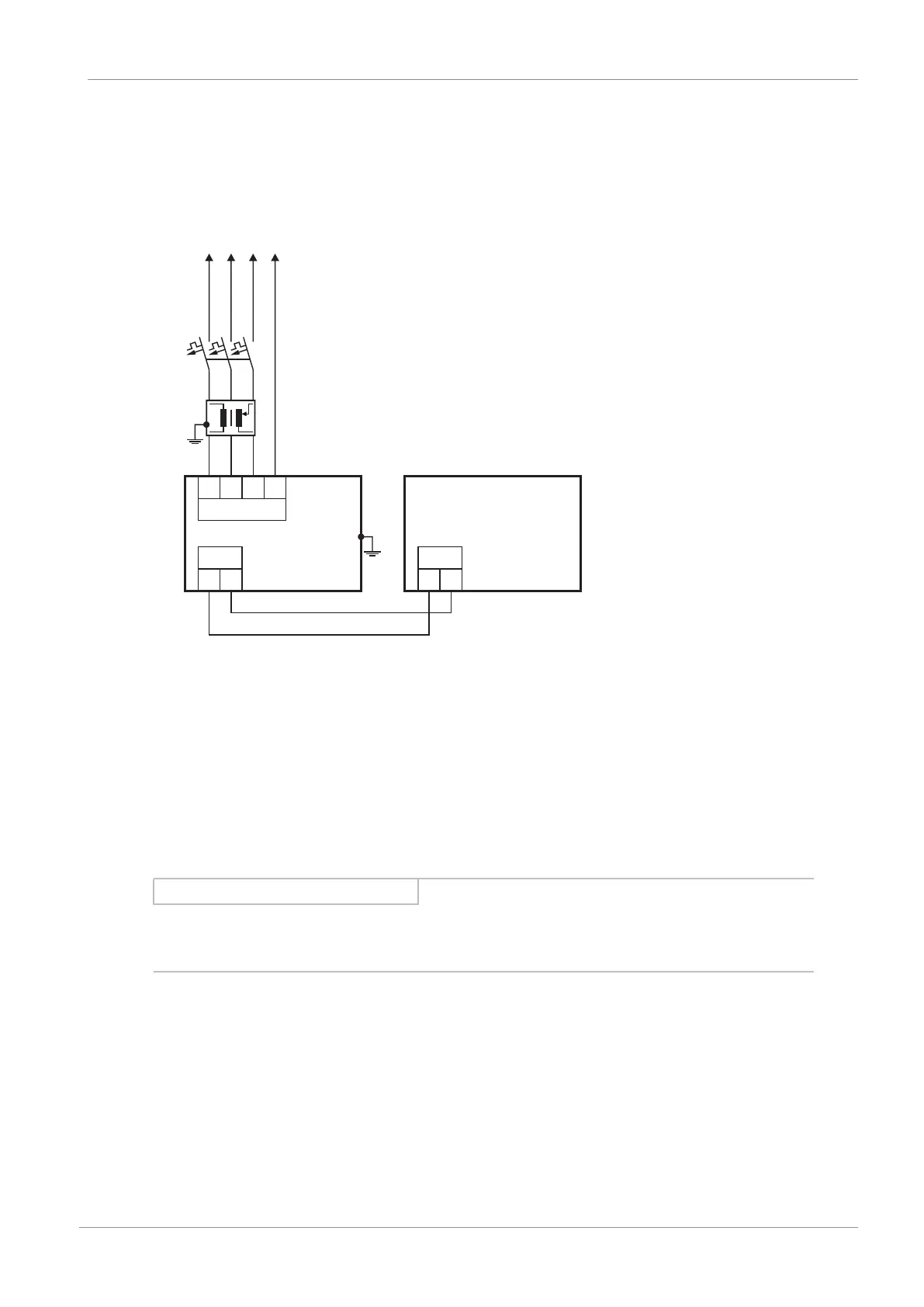

The following graphic shows the predominant supply connection.
X10
L1
F1
PE
L1 L2
T2
T1
PE
L3
L2 L3
X22
D- D+
PS6
X22
D- D+
SI6
T3
Fig.21: Reforming before commissioning
L1–L3 Lines 1 to 3
N Neutral conductor
PE Protective ground
F1 Fuse
T1 Variable transformer
T2 Supply module
T3 Drive controller
Information
For UL-compliant operation: The connections marked with PE are intended solely for the
functional grounding.
