Stober SI6A062 - Fig. 18 TEP Dimensional Drawing; Tab. 72 TEP Dimensions and Weight

STOBER 6 | Technical data
02/2019 | ID 442728.05
75
Dimensions and weight
Dimension TEP3720-0ES41 TEP3820-0CS41 TEP4020-0RS41
Height h [mm] Max. 153 Max. 153 Max. 180
Width w [mm] 178 178 219
Depth d [mm] 73 88 119
Vertical distance –
Fastening holes a1 [mm]
166 166 201
Vertical distance –
Fastening holes a2 [mm]
113 113 136
Horizontal distance –
Fastening holes b1 [mm]
53 68 89
Horizontal distance –
Fastening holes b2 [mm]
49 64 76
Drill holes – Depth e [mm] 5,8 5,8 7
Drill holes – Width f [mm] 11 11 13
Screw connection – M M5 M5 M6
Weight [g] 2900 5900 8800
Tab. 72: TEP dimensions and weight
e
f
h
w
a1
a2
d
b1
b2
a1
b1
M
A
M1:2
A
Drilling pattern

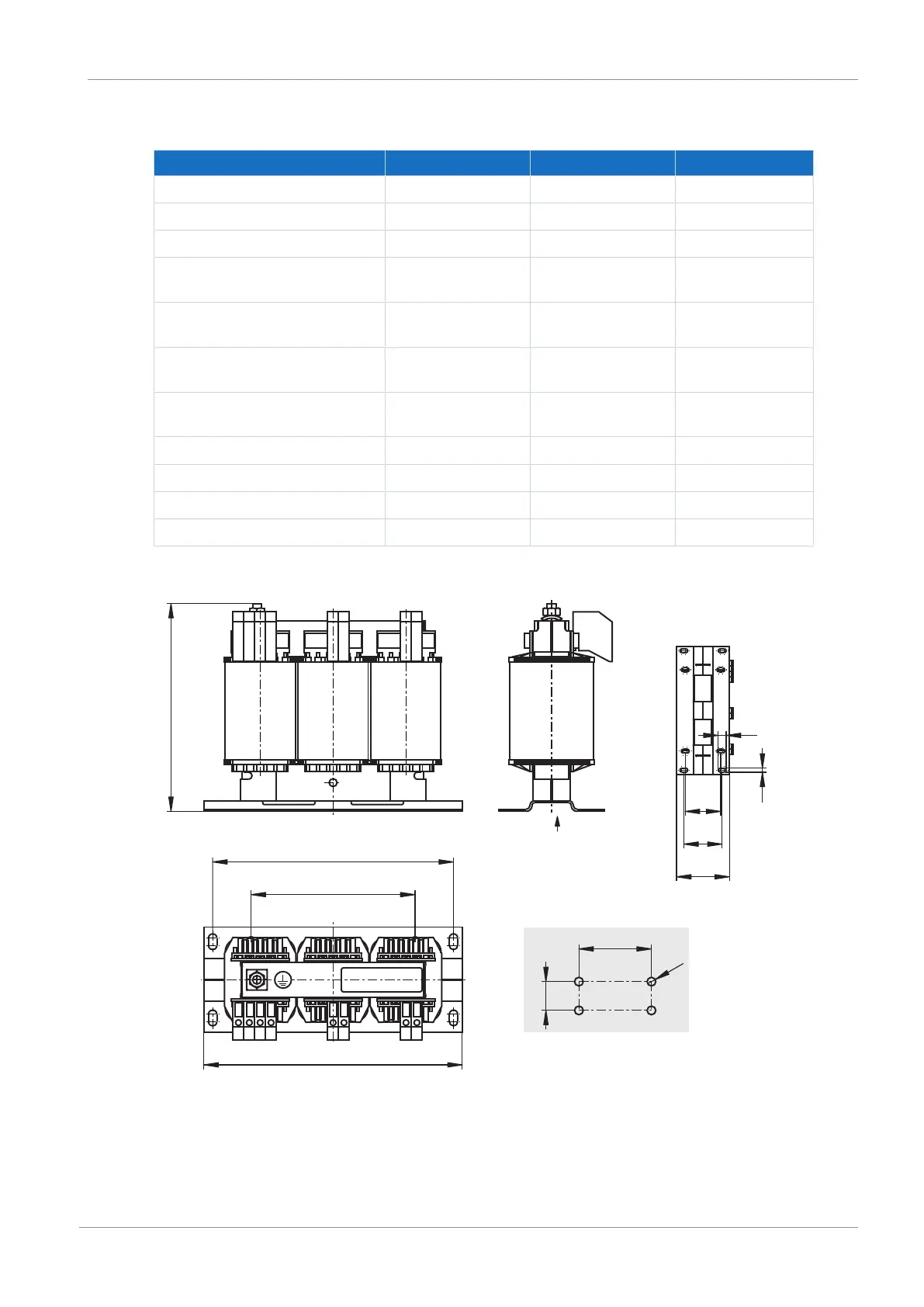

Fig.18: TEP dimensional drawing
