10.7.1 Power cables
Synchronous servo motors and Lean motors from STOBER are equipped with plug connectors
as standard.
STOBER provides suitable cables in various lengths, conductor cross-sections and connector
sizes.
10.7.1.1 Connection description
Depending on the size of the motor plug connector, power cables are available in the following
designs:
§ springtec quick lock for con.15
§ speedtec quick lock for con.23 and con.40
1 2 3 4 5
1
2
3
U
V
W
5
6
1BD1
1BD2
7
8
1TP1
1TP2
x
y
PE
7
8
5
6

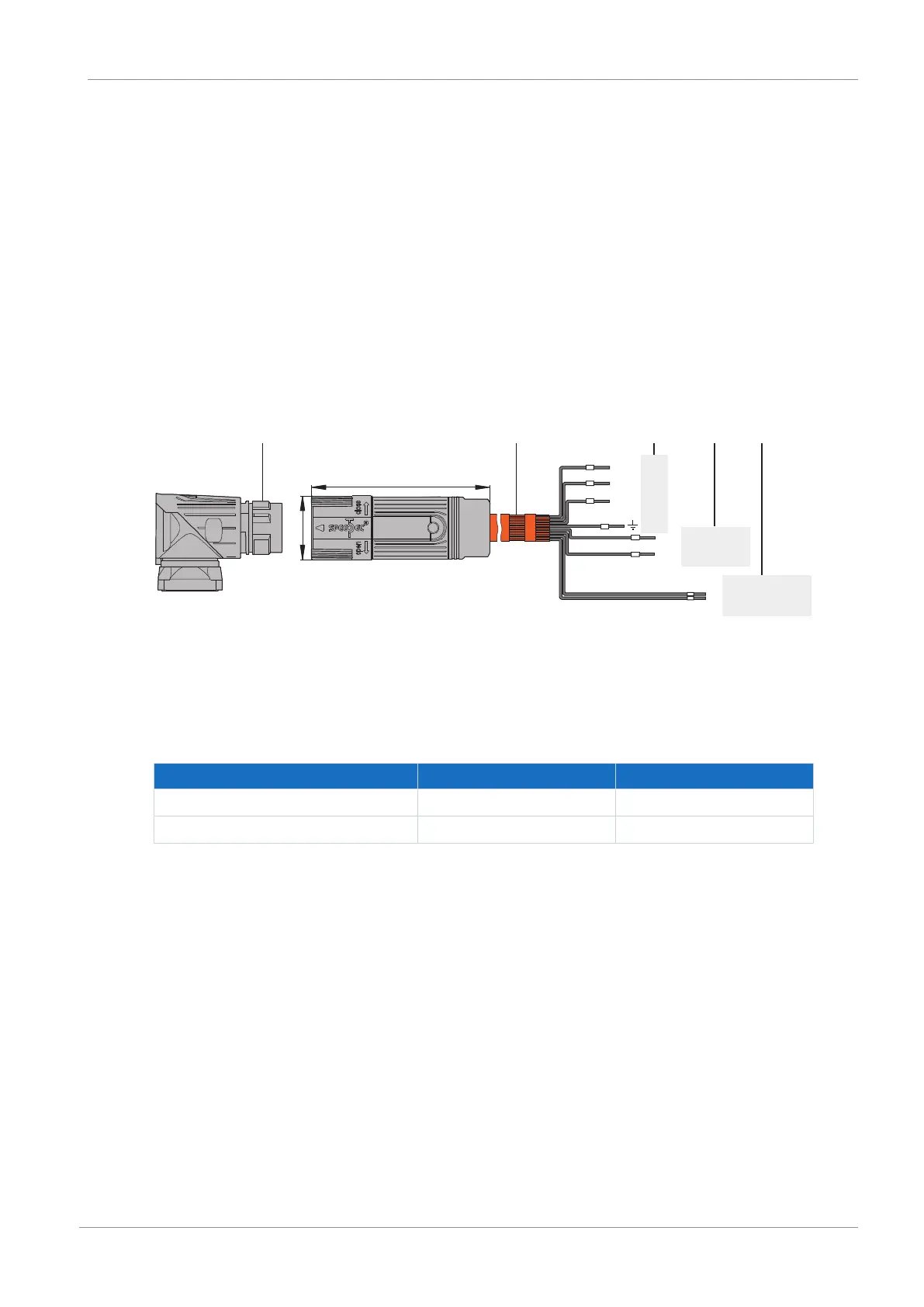

1: Plug connector
2: STOBER power cable, cable shield
3: Connection to terminal X20, motor
4: Connection of terminal X300, brake
5: Connection to terminal X2, temperature sensor
Motor connection Size 0 to 2 Size 3
Without output choke 50m, shielded 100m, shielded
With output choke 100m, shielded —
Tab. 138: Maximum cable length of the power cable [m]
