10 | Connection STOBER
142
02/2019 | ID 442728.05

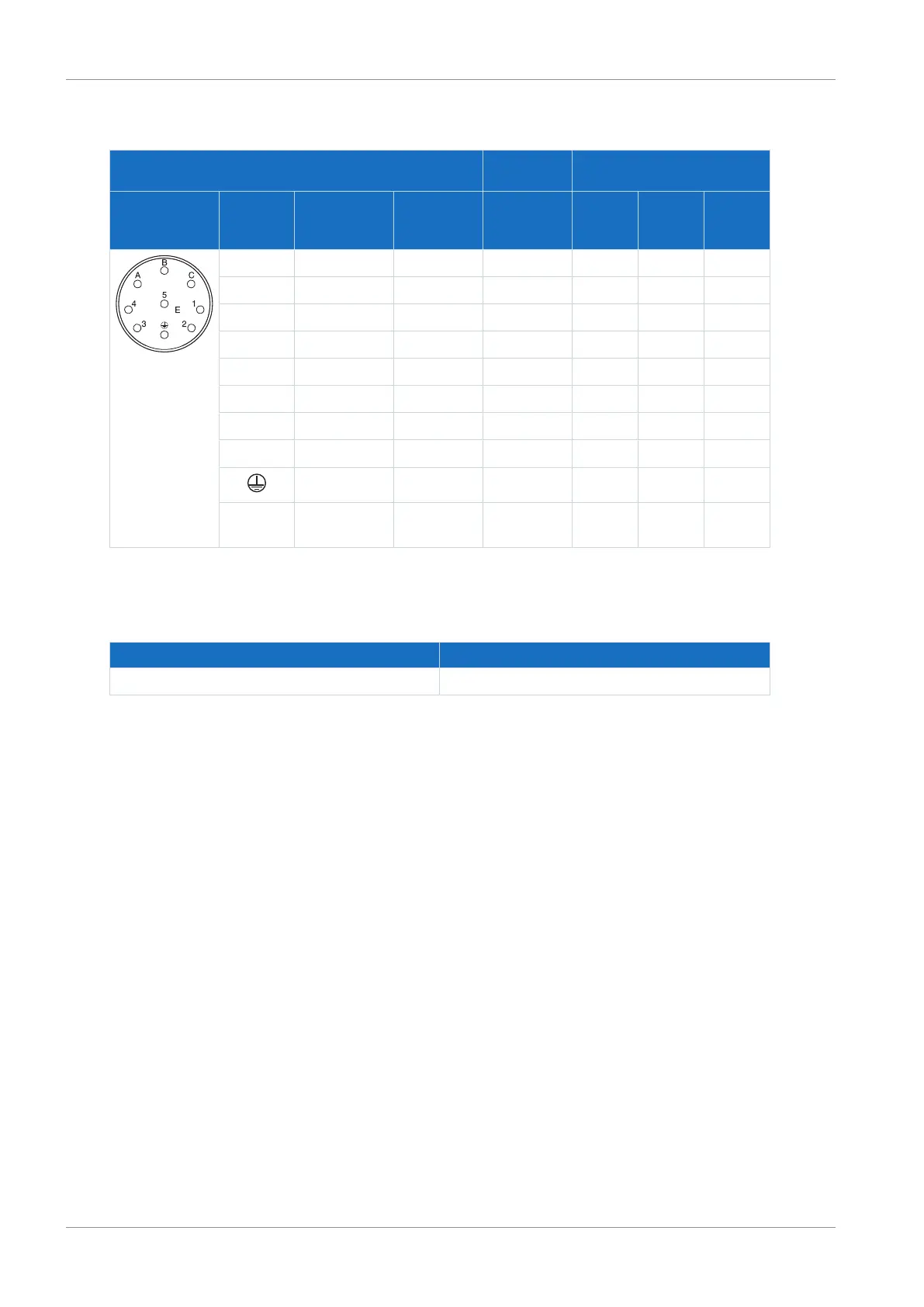

Power cables – con.15 plug connector
Motor
(1)
Cable
(2)
Drive controller
(3) – (5)
Motor
connection
diagram
Pin Designation Int. motor
Core color
Core No./
Core color
Pin
X20
Pin
X300
Pin
X2
A 1U1 BK 1 1 — —
B 1V1 BU 2 2 — —
C 1W1 RD 3 3 — —
1 1TP1
a)
BK 7 — — 7
2 1TP2
a)
WH 8 — — 8
3 1BD1 RD 5 — 5 —
4 1BD2 BK 6 — 6 —
5 — — — — — —
PE GNYE GNYE 4 — —
Housing Shield — — Shield
contact
— —
Tab. 139: con.15 power cable pin assignment
a) PTC
Length x [mm] Diameter y [mm]
42 18.7
Tab. 140: con.15 connector dimensions
