Objet260 User Guide 6 Operating and Maintaining the Objet260 3DPrinter
DOC-37004 Rev.E 6-54
RemovingtheDefectiveHead
10.Ontheprintblock,releasetheupperandlowerscrewsthatsecurethe
printheadintheblock.(Ifnecessary,youmayuseascrewdrivertoloosen
thescrews.)

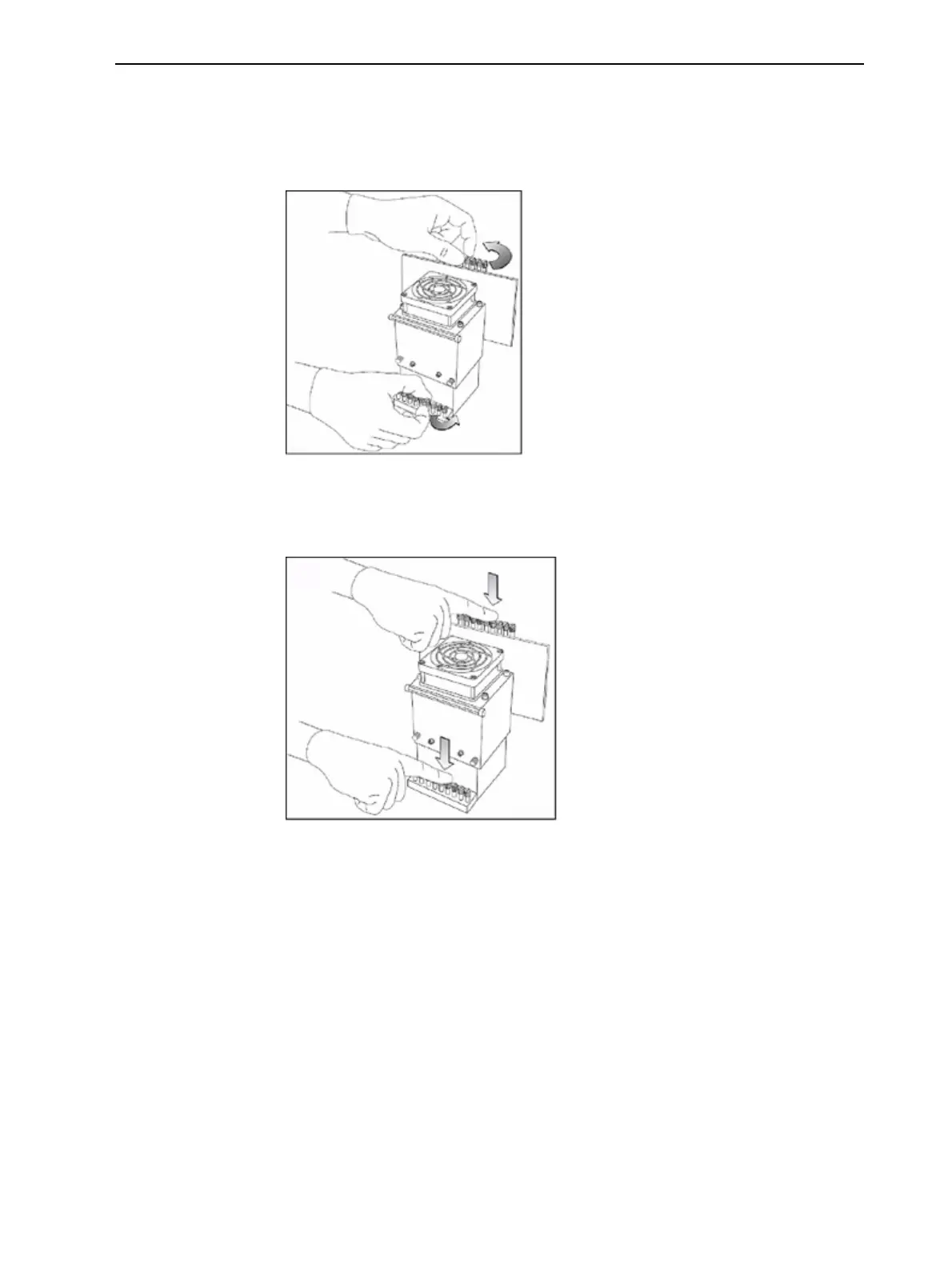

Figure6-73Releasingthelockingscrews
11.Pressdownontheupperandlowerlockingscrewstoreleasetheprint
head.
Figure6-74Releasingtheprinthead
