Objet260 User Guide 6 Operating and Maintaining the Objet260 3DPrinter
DOC-37004 Rev.E 6-55

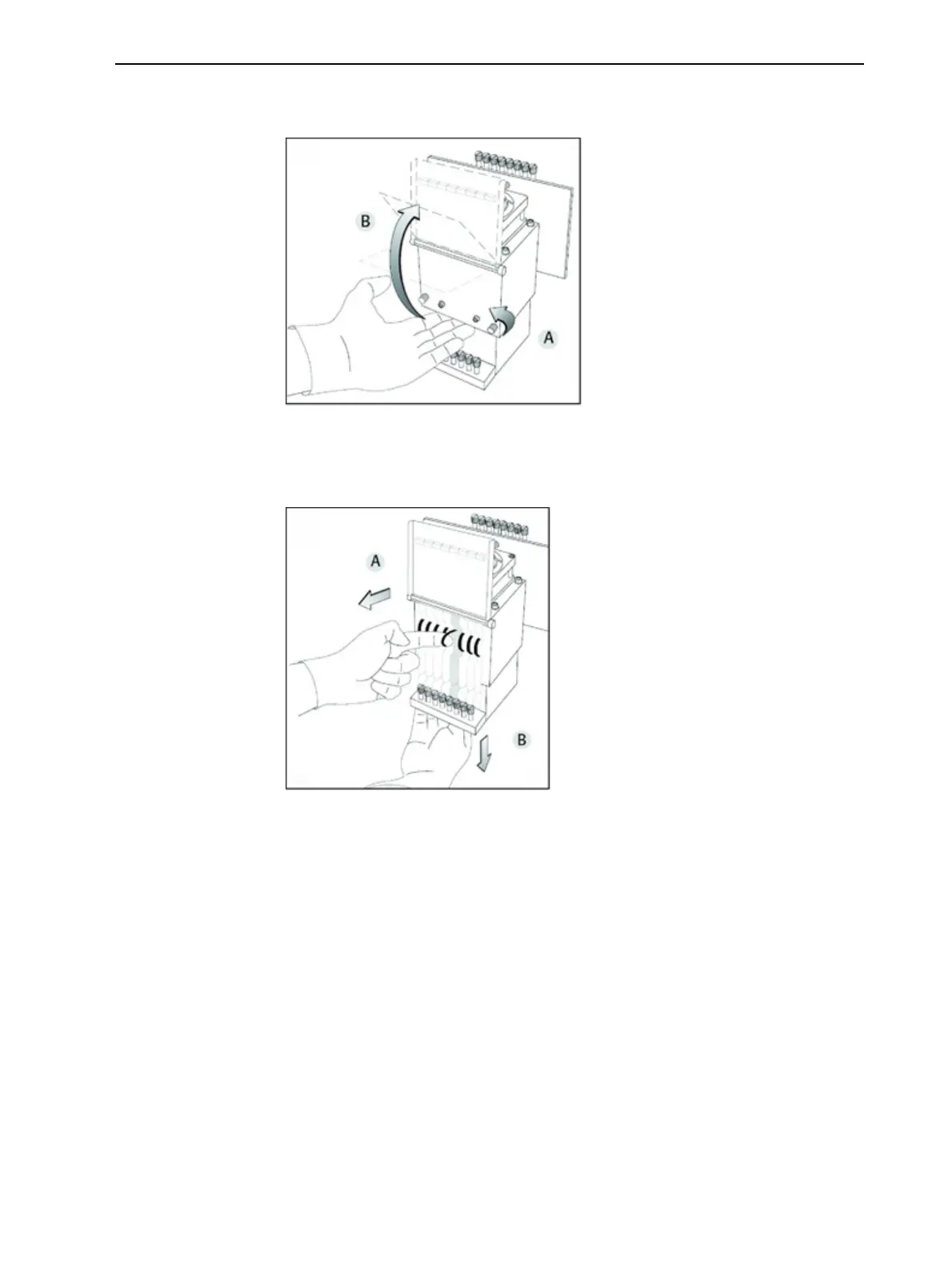

12.Loosenthescrewsonthedoorofthecompartmentprotectingthe
print-headdrivercards(A),thenpullandliftupthedoor(B).
Figure6-75Openingtheprint-headcompartment
13.Pulltheprint-headdrivercardoutofitssocketsothattheheadisfree(A),
andremoveitfromthebottomoftheprintblock(B).
Figure6-76Releasingtheprint-headdrivercardtoremovethehead
