Objet260 User Guide 6 Operating and Maintaining the Objet260 3DPrinter
DOC-37004 Rev.E 6-58

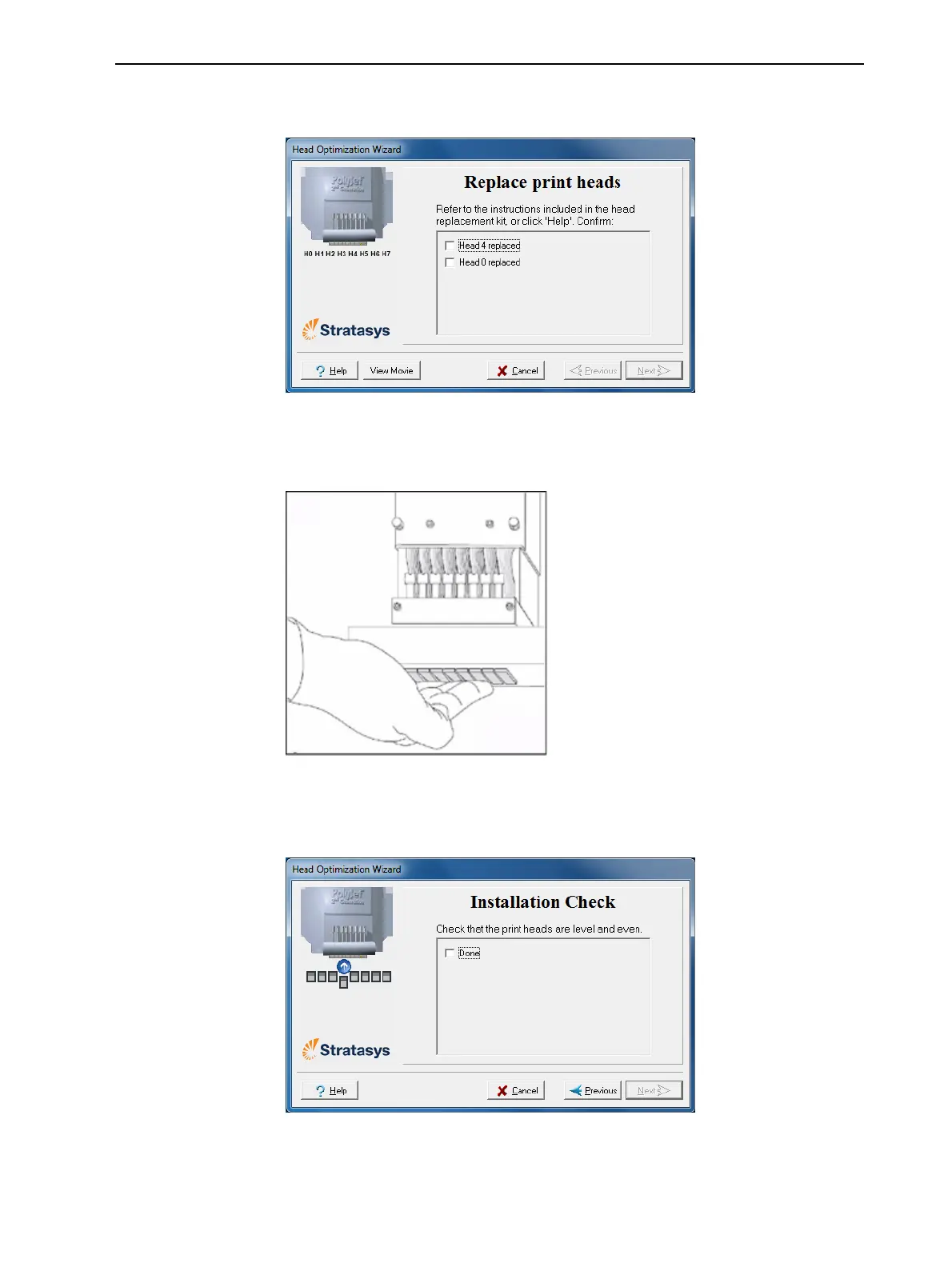

20.IntheReplace print heads screen,selectthecheckboxtoconfirmthat
youhavereplacedthehead(s),andclickNext.
Figure6-81Headreplacementconfirmation
21.Withyourfingers,makesurethatthenewheadislevelandevenwiththe
otherheads.

Figure6-82Checkingthelevelofthenewhead
22.Confirmthattheheadsarelevelbyselectingthecheckboxinthe
followingwizardscreen,andclickNext.

Figure6-83Installation-checkscreen
