SIDERAIL BRAKE/MOTION CONTROL PANEL, NURSE CONTROL
Button Name Function
Bed Motion
A
Brake Off Activation/
Indicator
Press this button to activate the brake off mode. The button
will be illuminated when this mode is activated making it an
indicator.
B Steer Activation/Indicator
Press this button to activate the steer mode. The button will be
illuminated when this mode is activated making it an indicator.
C Brake Activation/Indicator
Press this button to activate or deactivate the brake mode. The
button will be illuminated when this mode is activated making it
an indicator.
Indicators
D Brake Not Set
This LED will be illuminated when the brake system is not
activated.
E Brake Set
This LED will be illuminated when the brake system is
activated.
Bed
Positions
F Vascular Position
Press this button to start a treatment with the bed in the vascular
position.
G HOB 30 Degree Position
Press this button to start a treatment with the bed in the HOB
30 Degree position.
Note
The brake can also be set manually. See page 15 for more information.

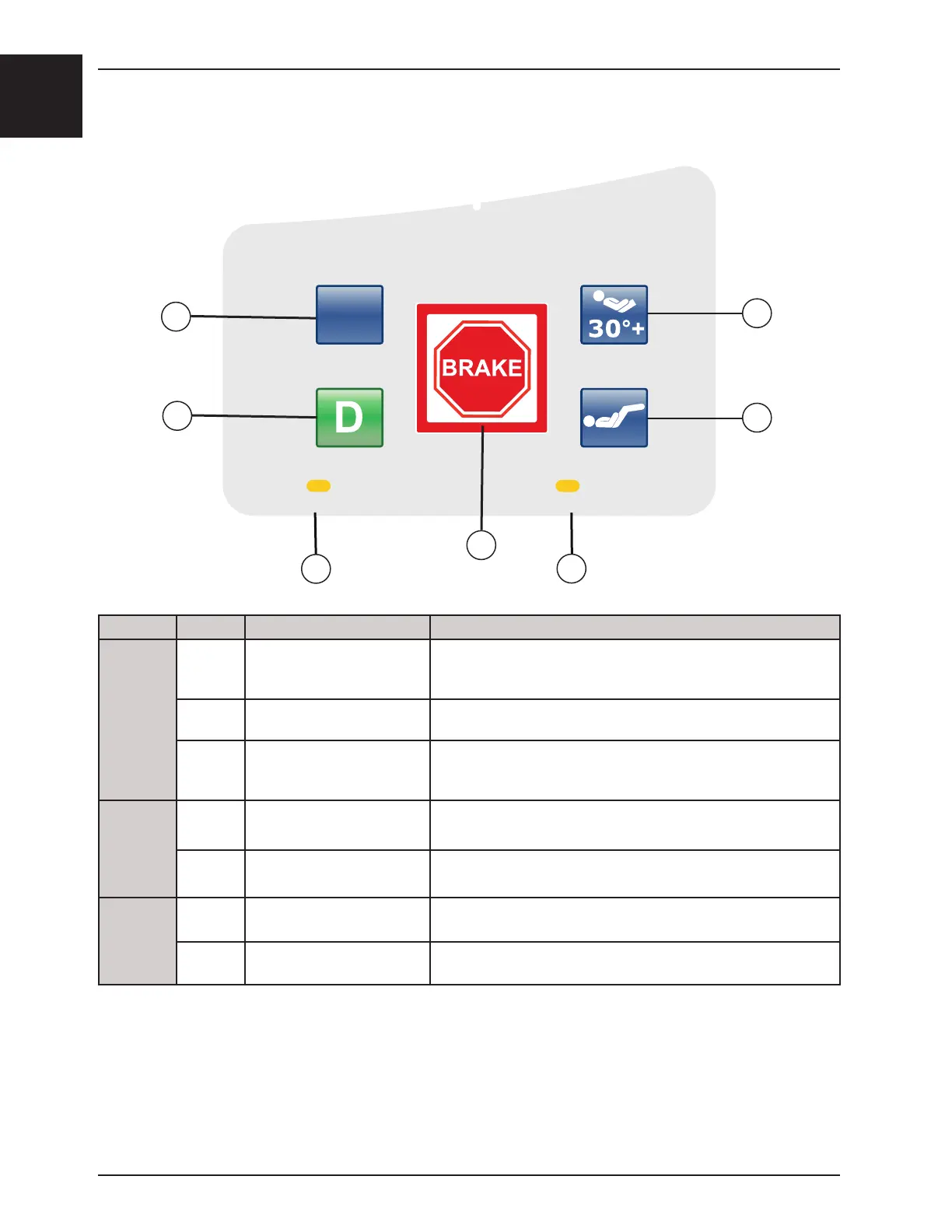

Siderail Operation Guide
Brake Set
Brake Not Set
QDF27-2239
Vascular
Position
Brake Off
Drive
N
B
C
G
E
D
A
F
(Patient’s Right Side Shown)
To Next Page
