CONTROL PANEL
Button Name Function
Bed
Positions
A HOB 30 Degree Activation
Press this button to start a treatment with the bed in the HOB
30 Degree position.
B Vascular Activation
Press this button to start a treatment with the bed in the vascular
position.
Bed Indicators
C Display Touch Screen
This displays all the functions selected using the buttons. It also
shows error codes, alarms and other necessary information.
D Main Menu
Quick return to the Main Menu; see below.
E
Bed Exit On(Armed)/
Off(Disarmed) Indicator
When this LED is illuminated, it means the Bed Exit is Armed
(On). When it is not illuminated, it means the Bed Exit is
Disarmed (Off). When the LED is flashing, an alarm condition
exists.
F System Message Indicator
These LEDs indicate any state the bed might be in or if there is
a need to call maintenance. (See descriptions on page 25.)
G Steer Activation/Indicator
Press this button to activate the Steer system. This button is
illuminated when the system is activated.
H Brake Activation/Indicator
Pres this button to activate or deactivate the Brake system. This
button is illuminated when the system is activated.
I
Brake Off
Activation/Indicator
Press this button to activate the Brake Off system. This button
is illuminated when the system is activated.

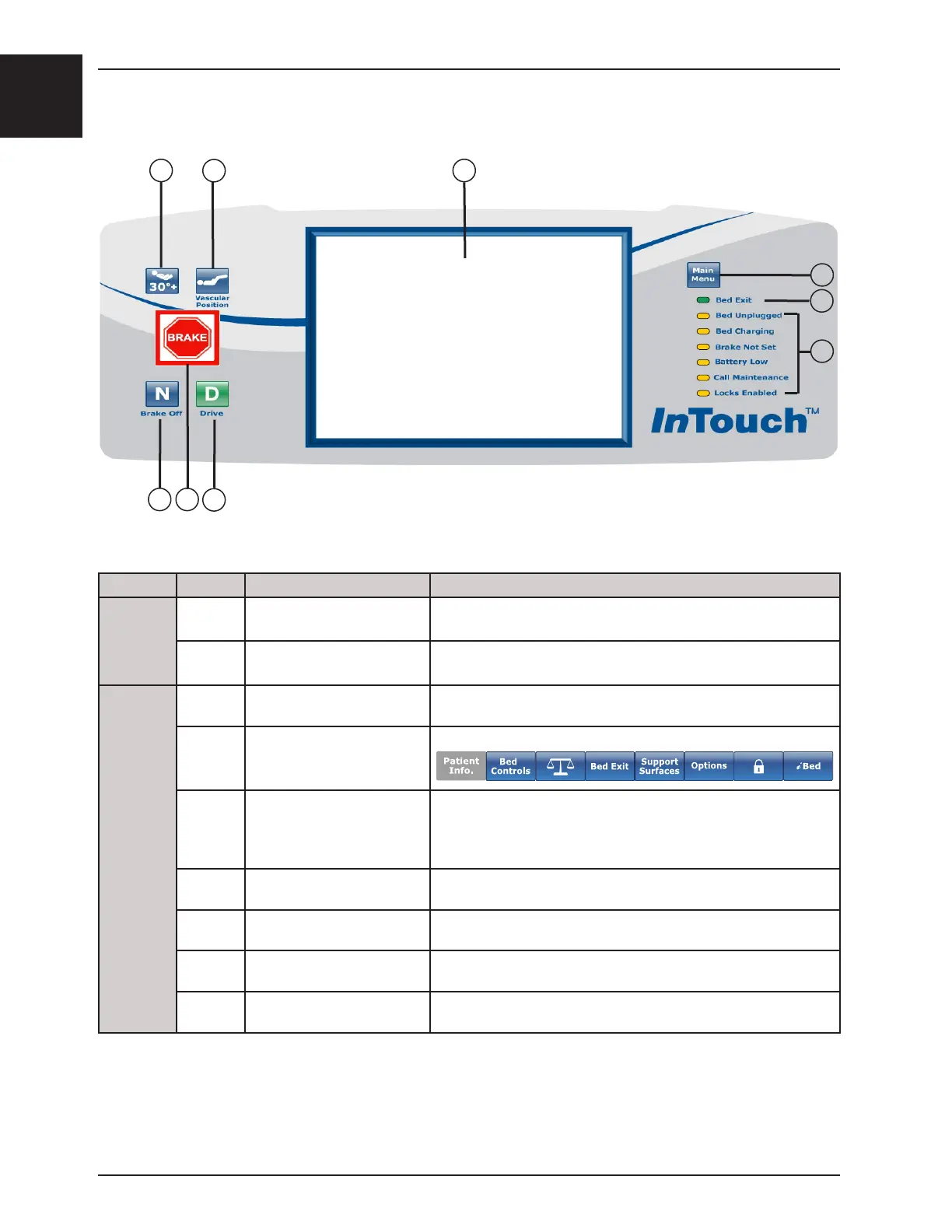

Footboard Operation Guide
