Bed Extender - FA64234
The Optional Bed Extender was designed to lengthen the bed by six inches.
This accessory is designed for the following product(s):
InTouch 1.0 (FL27)-2130
InTouch 1.0 (FL27)-2140
InTouch 2.0 (FL27)-2131
InTouch 2.0 (FL27)-2141
INSTALLATION
Required Tools: None
Refer to the figures following the Installation section for visual help.
1. Install the appropriate mattress cushion over
the bed extender (see Figure A).
2. Remove the footboard.
3. Insert bed extender legs on the bed end rods (see Figure B).
4. Replace the footboard over the bed extender rods (see Figure
B, section 2).
WARNING
• Ensure connector ‘A’ is securely fixed (see Figure B).
• Do not sit on the bed extender. This may cause the bed to flip.

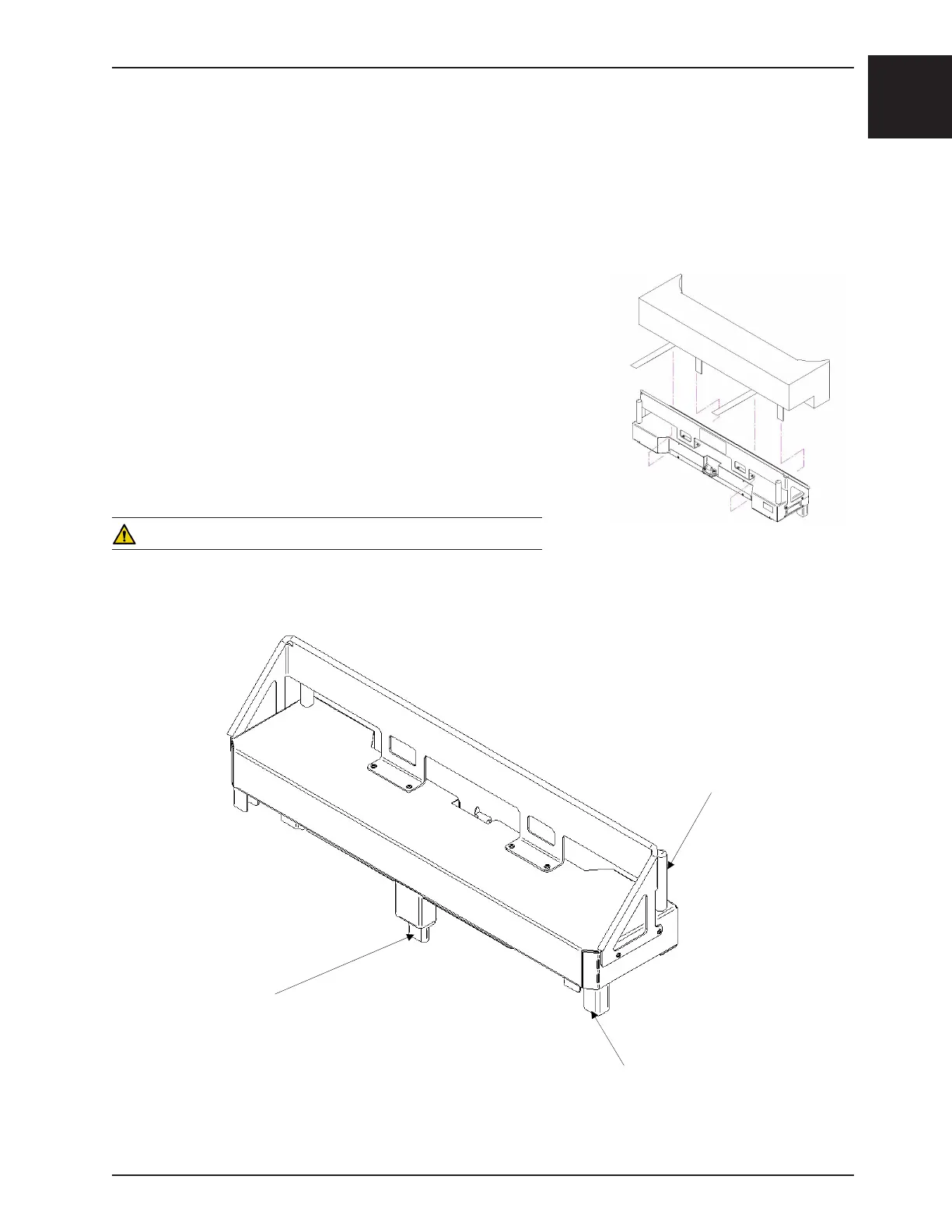

Figure A
Connector A
Section 1
Section 2
Figure B
To Next Page
